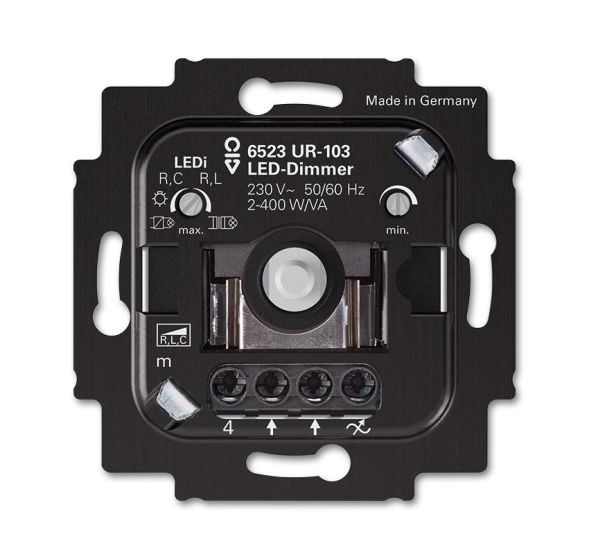

Very low installation depth: < 20 mm Without spreader. With rotary operation, pressure sequence changeover switch and soft locking. 2-wire connection technology (neutral conductor not required). Optimized for dimming retrofit LED lamps (LEDi). For dimmable retrofit LED lamps (LEDi). For dimmable retrofit LED lamps (LEDi) on conventional or electronic transformers For incandescent lamps, 230 V halogen lamps, low-voltage halogen lamps with conventional or electronic transformers and dimmable halogen energy-saving lamps. Mixed load operation of LEDi and conventional lamps possible. With manually adjustable operating mode: leading edge / trailing edge. With adjustable minimum / maximum brightness. Low noise through the use of MOSFET transistors. Short-circuit proof and overload proof (electronic fuse). Without central plate. Nominal voltage: 230 V~, + 10 % / - 10 % Nominal frequency: 50 Hz/60 Hz Nominal power: 2 - 100 W/VA (phase control) Nominal power: 2 - 400 W/VA (phase control) Can be illuminated using a glow lamp. Glow lamp included with the central plate. For conventional transformers, allow for ~20 % transformer losses. For electronic transformers, allow for ~5 % transformer losses.
| Property | Value |
| Device height: | 20 mm |
| Device width: | 71 mm |
| Device depth: | 71 mm |
| Connection type: | Screw terminal |
| Mounting type: | Flush-mounted |
| Phase control dimming: | yes |
| Phase control dimming: | yes |
| Nominal voltage: | 207 to 253 V |
| Color: | black |
| Suitable for protection class (IP): | IP20 |
| Operating method: | Rotary/push button |
| Halogen-free: | no |
| Composition: | Basic element |
| Load type: | universal and LED retrofit |
| Series dimmer: | no |
| Extension input: | yes |
| Light value memory: | yes |
| Can be used with button: | no |
| Can be used with motion detector: | no |
| Can be used with Presence detector: | no |
| Can be used with timer: | no |
| Can be used with radio button: | no |
| Can be used with IR button: | no |
| Mounting type: | Mounting with screw |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Surface: | untreated |
| Surface finish: | matt |
| Frequency: | 50 to 60 Hz |
| Control voltage: | 220 to 240 V |
| Transparent: | no |
| App control via Bluetooth: | no |
| Impact resistance: | IK00 |
| Min. depth of the device box: | 40 mm |
