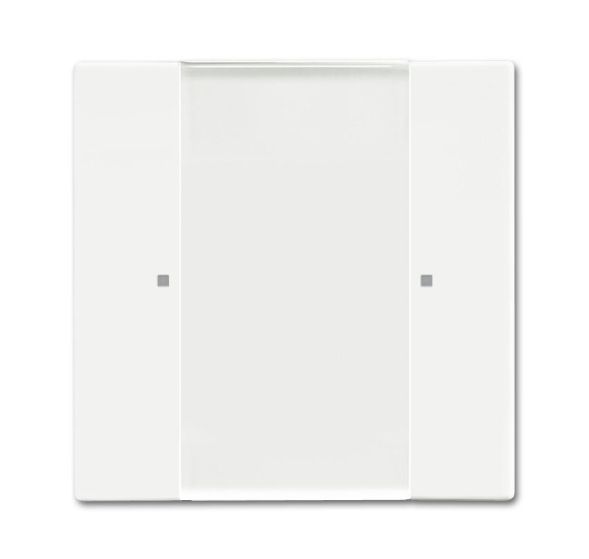

ZigBee Light Link control element, matt studio white, remote control, ZigBee Light Link control elements, ZigBee Light Link control element 1-way For switching and dimming electrical loads wirelessly. For ZigBee Light Link UP inserts 6710 U, 6711 U and 6715 U. In conjunction with the ZigBee Light Link UP inserts 6711 U and 6715 U, the top rocker is used to directly switch or dim the non-ZLL lamps and other loads connected to the UP insert. With the 6736 and 6737, the remaining buttons can be used to save, call up and dim light scenes. In conjunction with the ZigBee Light Link UP insert 6710 U for saving and calling up 2 light scenes or dimming a light scene. For combination/integration into other systems that work with the ZigBee Light Link protocol, such as Philips hue. Button function: switching/dimming/light scenes. With labeling field. Without enclosed labeling sheet. Suitable labeling software at www.BUSCH-JAEGER-Beschriftungstool.de Transmission/reception frequency: 2.4 GHz. Range: approx. 100 m (open field). Protection class (device): IP 20 Temperature range (device): -5 °C to 45 °C Dimensions (H x W x D): 64 mm x 64 mm x 18 mm
| Property | Value |
| Mounting type: | Flush-mounted |
| Radio frequency: | 2400 MHz |
| Power supply: | other |
| Color: | white |
| RAL number (similar): | 9016 |
| Material: | Plastic |
| Halogen-free: | yes |
| Surface: | painted |
| Mounting type: | Clamp fastening |
| Material quality: | Thermoplastic |
| Surface finish: | matt |
| Suitable for protection class (IP): | IP20 |
| Suitable for dimmer: | yes |
| Suitable for switch: | yes |
| As module/circuit board: | yes |
| Button operation: | yes |
| Switching operation: | yes |
| With radio button: | yes |
