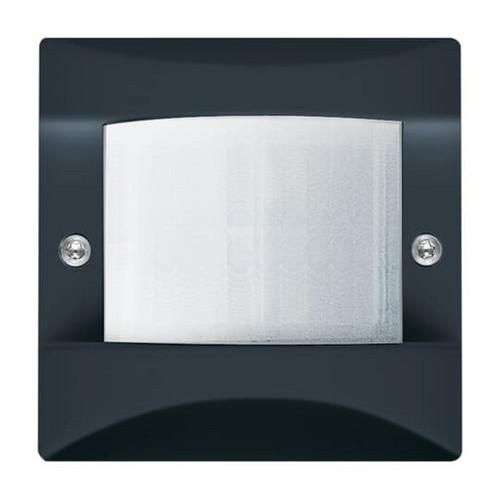

Busch-Wächter 180 UP sensor for all-weather 44, anthracite, flush-mounted, water-protected, special plug-in devices, other, Busch-Wächter 180 UP sensor for all-weather 44 with combination lens For automatic switching of consumers depending on movement and brightness. For outdoor use. For detection down to the ground. For Busch universal relay insert 6401 U-102. IP 44 only in conjunction with frame All-weather 44. Monitoring density: 40 sectors with 160 switching segments. Switch-off delay: 10 s to 30 min or short-term pulse 1 s adjustable. With screw fastening. Detection range: front: 15 m, side: 10 m Detection range 2: front: 9 m, side: 4 m Opening angle: 180 ° Brightness limit: 5 lux to daytime operation Installation height: 0.8 m - 1.2 m alternatively: 2.5 m Sensor protection class: IP 44 Device temperature range: -25 °C to 55 °C Installation position: vertical
| Property | Value |
| Mounting height: | 1.1 m |
| Mounting type: | Flush-mounted |
| Design: | Motion detector |
| Constant light control: | no |
| Adjustable response sensitivity: | no |
| Horizontal detection angle: | 0 to 180 ° |
| Creep-by protection/rear field monitoring: | no |
| Min. duty cycle: | 10 s |
| Max. Duty cycle: | 32 min |
| Max. range to one side: | 10 m |
| Max. Frontal range: | 15 m |
| HVAC control: | no |
| Response brightness adjustable: | yes |
| Networkable: | yes |
| Teach function for response brightness: | no |
| Dimming function with dimming insert: | no |
| Suitable for protection class (IP): | IP44 |
| Suitable for wireless transmission: | no |
| Color: | anthracite |
| Staircase monitoring: | yes |
| Halogen-free: | yes |
| Animal corridor: | no |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| RAL number (similar): | 7021 |
| Self-learning switch-off delay: | no |
| Operating mode switch: | no |
