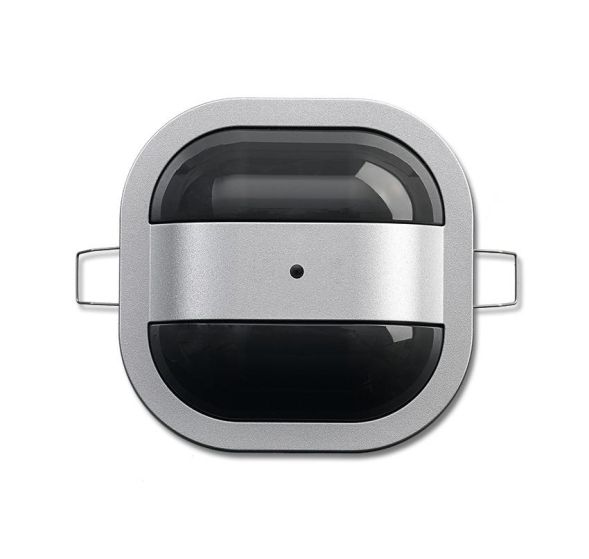

Busch-Presence detector Universal BT, e-contact, aluminum silver, presence detector, presence detector, Busch-Presence detector Universal BT, e-contact 12 meter master presence detector with mixed light measurement. For switching lights depending on brightness and motion. With Bluetooth interface for parameterization and operation. Adjustment of all setting options via smartphone or tablet. Light control via smartphone or tablet app. With electronic switching contact for LED operation. With selectable soft ON/OFF function. Detection range (at 3 m installation height): circular: seated people: up to 10 m, walking people: up to 12 m. Extension of the detection range through master/slave combination. Installation height 23 mm. For semi-automatic, comfort and fully automatic operation. Additional on/off option via button input. With permanent light / permanent off function (8 hours), can be activated via intelligent extension input. With selectable presence simulation when not present. With integrated storage of the duty cycle (energy monitor). With brightness-independent test mode for evaluating the detection area. With teach-in function for the brightness switching threshold, IR service handheld transmitter required. With detection display in test mode. Ceiling installation via integrated spring clip. Anti-twist protection via additional quick clamping. Adjustment elements accessible from the front. Monitoring density: 72 sectors with 640 switching segments. Individual shutdown and sensitivity adjustment of individual sensors possible. Switch-off delay: approx. 1 min. - 30 min. or short-term pulse adjustable. With selectable dynamic switch-off delay. Suitable for suspended ceilings with a panel thickness of 9 to 25 mm. Installation hole size: 68 mm. Controls: 2 controls for setting the brightness switching threshold and run-on time. Display elements: LED detection and status display. Nominal voltage: 230 V~, +10 % / -10 % Nominal frequency: 50 Hz/60 Hz Outputs: 1x normally open contact, non-potential Load type: 230 V incandescent lamps Nominal power: 3 - 200 W Load type: 230 V~ LEDi Nominal power: 3 - 200 W/VA Opening angle: 360 ° Brightness limit: 5 lux - 2000 lux Installation height: 2 m - 4 m Protection class (device): IP 40 Temperature range (device): -5 °C to 45 °C Dimensions (H x W x D): 94 mm x 94 mm x 59 mm Installation depth: 36 mm 60669-2-1
| Property | Value |
| Depth: | 59 mm |
| Width: | 94 mm |
| Height: | 94 mm |
| Design: | Presence detector |
| Color: | Aluminum |
| Nominal voltage: | 230 V |
| RAL number (similar): | 9006 |
| Material: | Plastic |
| Mounting type: | Flush-mounted |
| Response brightness: | 5 to 2000 lx |
| Protection class (IP): | IP40 |
| Max. switching power: | 200 W |
| Voltage type: | AC |
| Max. range to one side: | 6 m |
| Scan angle: | 360 ° |
| Suitable for wall mounting: | no |
| Min. duty cycle: | 60 s |
| Max. Duty cycle: | 30 min |
| Creep-under protection/rear field monitoring: | yes |
| Temperature: | -5 to 45 °C |
| Adjustable response brightness: | yes |
| Adjustable response sensitivity: | yes |
| Max. presence area: | 110 m² |
| Max. frontal range: | 6 m |
| Max. Inrush current: | 350 A |
| Sensor type: | passive infrared |
| Optimal installation height: | 2 m |
| Surface finish: | matt |
| Surface: | painted |
| Material quality: | thermoplastic |
| Detection field diameter on floor: | 12 m |
| Number of switching zones: | 640 |
| Frequency: | 50 to 60 Hz |
| Halogen-free: | yes |
| Constant light control: | no |
| HVAC control: | no |
| Forced shutdown: | yes |
| Animal corridor: | no |
| Networkable: | yes |
| Staircase monitoring: | yes |
| Bypass switch: | no |
| Suitable for wireless transmission: | no |
| Remote controllable: | yes |
| With signal unit: | no |
| Alarm function: | no |
| Teach function for response brightness: | no |
| Dimming function with dimming insert: | no |
| Transparent: | no |
| With remote control: | no |
| Suitable for C load: | yes |
| With DALI interface: | no |
| Extension input: | yes |
| Forced switching on: | yes |
| Suitable for ceiling mounting: | yes |
| Connection type: | Plug-in terminal |
| Antibacterial treatment: | no |
| Min. inrush current: | 0.01 A |
| Installation depth: | 36 mm |
| Installation diameter: | 68 mm |
| Min. depth of device box: | 36 mm |
