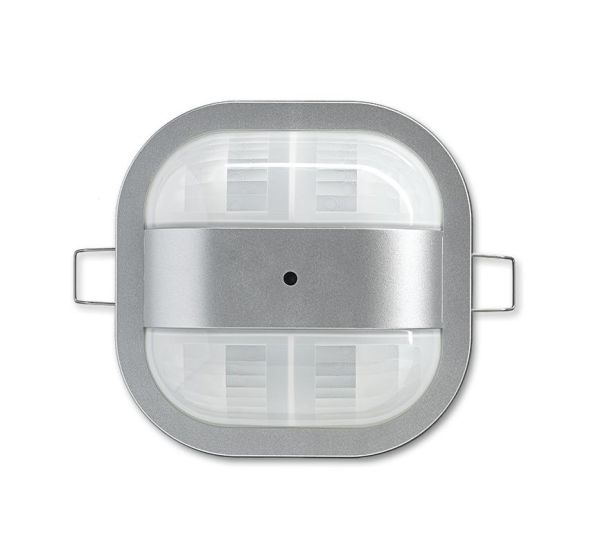

Busch presence detector Corridor, Slave, aluminum silver, motion/presence detector, presence detector, Busch presence detector Corridor, Slave 24 meter slave presence detector to extend the detection range of master presence detectors. Detection range (at 3 m installation height): rectangular Walking people: across the detector 24 mx 3 m, frontal/lengthways to the detector 14 mx 3 m. Installation height 27 mm. Ceiling installation via integrated spring clip. Anti-twist protection via additional quick-clamping. Monitoring density: 92 sectors with 368 switching segments. Suitable for suspended ceilings with a panel thickness of 9 to 25 mm. Installation hole size: 68 mm. Nominal voltage: 230 V~, +10 % / -10 % Nominal frequency: 50 Hz/60 Hz Opening angle: 360 ° Mounting height: 2 m - 4 m Protection class (device): IP 40 Temperature range (device): -5 °C to 45 °C Dimensions (H x W x D): 94 mm x 94 mm x 76 mm Installation depth: 49 mm
| Property | Value |
| Depth: | 76 mm |
| Width: | 94 mm |
| Height: | 94 mm |
| Version: | Presence detector |
| Color: | Aluminum |
| Nominal voltage: | 230 V |
| RAL number (similar): | 9006 |
| Material: | Plastic |
| Mounting type: | Flush-mounted |
| Response brightness: | 5 to 2000 lx |
| Protection class (IP): | IP40 |
| Voltage type: | AC |
| Max. range to one side: | 1.5 m |
| Scan angle: | 360 ° |
| Suitable for wall mounting: | no |
| Creep-by protection/rear field monitoring: | yes |
| Temperature: | -5 to 45 °C |
| Adjustable response brightness: | no |
| Adjustable response sensitivity: | no |
| Max. Presence area: | 72 m² |
| Max. range frontal: | 12 m |
| Sensor type: | passive infrared |
| Optimal installation height: | 2 m |
| Surface finish: | matt |
| Surface: | painted |
| Material quality: | thermoplastic |
| Number of switching zones: | 368 |
| Frequency: | 50 to 60 Hz |
| Halogen-free: | yes |
| Constant light control: | no |
| HVAC control: | no |
| Forced shutdown: | no |
| Animal corridor: | no |
| Networkable: | yes |
| Staircase monitoring: | yes |
| Bypass switch: | no |
| Suitable for wireless transmission: | no |
| Remote controllable: | no |
| With signal unit: | no |
| Alarm function: | no |
| Teach function for response brightness: | no |
| Dimming function with dimming insert: | no |
| Transparent: | no |
| With remote control: | no |
| Suitable for C load: | no |
| With DALI interface: | no |
| Extension input: | no |
| Forced switching on: | no |
| Suitable for ceiling mounting: | yes |
| Connection type: | Plug-in terminal |
| Antibacterial Treatment: | no |
| Installation depth: | 49 mm |
| Installation diameter: | 68 mm |
| Min. depth of device box: | 49 mm |
