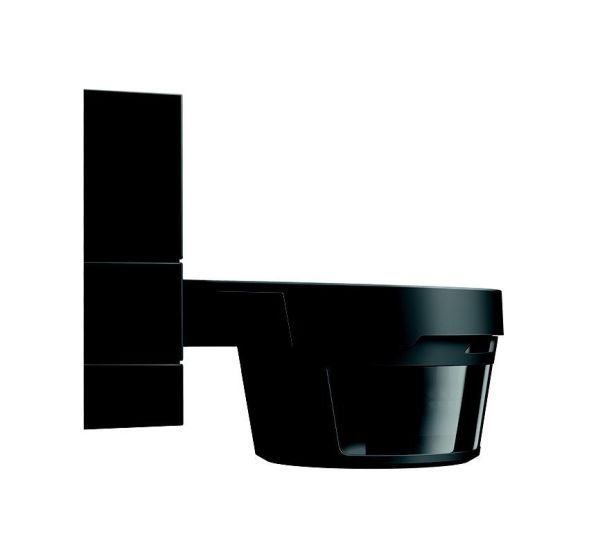

Busch-Wächter 220 MasterLINE, anthracite, motion/presence detector, Busch-Wächter AP, Busch-Wächter 220 MasterLINE Electronic motion detector for detecting heat movements. Can be remotely controlled via IR handheld transmitter 6841-101. Can be remotely parameterized via IR service handheld transmitter 6842-101. With detection and operating mode display. With floor and rear field monitoring. With profile lens for the best detection. Detection sensitivity can be adjusted via IR service handheld transmitter. Monitoring density: 84 sectors with 336 switching segments. With integrated dismantling difficulty. All functions are microprocessor-controlled. Continuous light (4 hours), light switch-off (4 hours) and presence simulation can be activated via IR handheld transmitter. Reading in the current brightness value as switching threshold via IR handheld transmitter. With automatic range stabilization. With automatic interference suppression. With automatic glare protection. With brightness-independent test mode for evaluating the detection area. Individual adjustment of the detection area using the enclosed, cut-to-size cover film. Additional switch-on option using the opening button. Switch-off delay: 10 s to 30 min or short-term pulse 1 s adjustable. Nominal voltage: , +10 % / -10 % Nominal frequency: 50 Hz/60 Hz Outputs: 1x normally open contact, non-potential Load type: ohmic, capacitive and inductive Nominal current: 16 AX, at cos 0.6 Nominal power: 3680 W/VA Detection range: front: 16 m, side: 16 m Opening angle: 220 ° Brightness limit: 0.5 lux - 300 lux, day operation Mounting height: 2.5 m Device protection class: IP 55 Device temperature range: -25 °C to 55 °C Dimensions (H x W x D): 115 mm x 125 mm x 141 mm
| Property | Value |
| Depth: | 141 mm |
| Width: | 115 mm |
| Height: | 125 mm |
| Version: | motion detector |
| Color: | anthracite |
| Nominal voltage: | 230 V |
| RAL number (similar): | 7021 |
| Material: | plastic |
| Mounting type: | surface-mounted |
| Response brightness: | 0 to 1000 lx |
| Protection class (IP): | IP55 |
| Max. switching capacity: | 3680 W |
| Voltage type: | AC |
| Max. range to one side: | 16 m |
| Scan angle: | 220 ° |
| Suitable for wall mounting: | yes |
| Min. duty cycle: | 10 s |
| Max. Duty cycle: | 30 min |
| Anti-creep protection/rear field monitoring: | yes |
| Temperature: | -25 to 55 °C |
| Adjustable response brightness: | yes |
| Adjustable response sensitivity: | yes |
| Max. range, frontal: | 16 m |
| Max. Inrush current: | 80 A |
| Sensor type: | passive infrared |
| Optimal installation height: | 2.5 m |
| Surface finish: | matt |
| Surface: | untreated |
| Material quality: | thermoplastic |
| Detection field diameter on floor: | 32 m |
| Number of switching zones: | 1 |
| Detection angle horizontal: | 8 to 220 ° |
| Frequency: | 50 to 60 Hz |
| Sensor swivel range, vertical: | -30 to 30 ° |
| Sensor swivel range, horizontal: | -30 to 30 ° |
| Halogen-free: | yes |
| Constant light control: | no |
| HVAC control: | no |
| Forced shutdown: | yes |
| Animal corridor: | no |
| Networkable: | no |
| Staircase monitoring: | yes |
| Bypass switch: | no |
| Suitable for wireless transmission: | no |
| Remote controllable: | yes |
| With signal unit: | no |
| Alarm function: | no |
| Teach function for response brightness: | no |
| Dimming function with dimming insert: | no |
| Transparent: | no |
| With remote control: | no |
| Suitable for C load: | yes |
| With DALI interface: | no |
| Extension input: | no |
| Forced switching on: | yes |
| Suitable for ceiling mounting: | no |
| Connection type: | other |
| Antibacterial treatment: | no |
| Min. inrush current: | 0.01 A |
