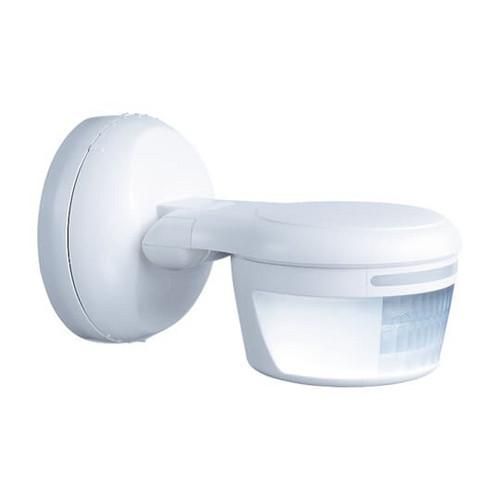

Busch-Wächter 90 ProfessionalLINE, alpine white, motion/presence detector, Busch-Wächter AP, Busch-Wächter 90 ProfessionalLINE Electronic motion detector for detecting thermal movements. With detection and operating mode display. With floor and rear field monitoring. With level compensation: +/- 30°. With profile lens for the best detection. Monitoring density: 50 sectors with 200 switching segments. With brightness-independent test mode for evaluating the detection area. Additional switching option via opening button. Switch-off delay: optionally 1 / 3 or 5 min. Nominal voltage: , +10 % / -10 % Nominal frequency: 50 Hz/60 Hz Outputs: 1x normally open contact, non-potential Load type: ohmic, capacitive and inductive Nominal current: 16 AX, at cos 0.6 Nominal power: 3680 W/VA Detection range: front: 12 m, side: 6 m Opening angle: 90 ° Brightness limit: 3 lux / 15 lux / day operation Mounting height: 2.5 m Device protection class: IP 55 Device temperature range: -25 °C to 55 °C Dimensions (H x W x D): 97 mm x 97 mm x 159 mm
| Property | Value |
| Depth: | 105 mm |
| Width: | 97 mm |
| Height: | 102 mm |
| Version: | motion detector |
| Color: | white |
| Nominal voltage: | 230 V |
| RAL number (similar): | 9010 |
| Material: | plastic |
| Mounting type: | surface-mounted |
| Response brightness: | 3 to 1000 lx |
| Protection class (IP): | IP55 |
| Max. switching capacity: | 3680 W |
| Voltage type: | AC |
| Max. range to one side: | 6 m |
| Scan angle: | 90 ° |
| Suitable for wall mounting: | yes |
| Min. duty cycle: | 60 s |
| Max. Duty cycle: | 5 min |
| Anti-creep protection/rear field monitoring: | yes |
| Temperature: | -25 to 55 °C |
| Adjustable response brightness: | yes |
| Adjustable response sensitivity: | no |
| Max. frontal range: | 12 m |
| Max. Inrush current: | 80 A |
| Sensor type: | passive infrared |
| Optimal mounting height: | 2.5 m |
| Surface finish: | matt |
| Surface: | untreated |
| Material quality: | thermoplastic |
| Number of switching zones: | 1 |
| Horizontal detection angle: | 8 to 90 ° |
| Frequency: | 50 to 60 Hz |
| Sensor swivel range, vertical: | -40 to 90 ° |
| Sensor swivel range, horizontal: | -30 to 30 ° |
| Halogen-free: | yes |
| Constant light control: | no |
| HVAC control: | no |
| Forced shutdown: | no |
| Animal corridor: | no |
| Networkable: | no |
| Staircase monitoring: | yes |
| Bypass switch: | no |
| Suitable for wireless transmission: | no |
| Remote control: | no |
| With signal unit: | no |
| Alarm function: | no |
| Teach function for response brightness: | no |
| Dimming function with dimming insert: | no |
| Transparent: | no |
| With remote control: | no |
| Suitable for C load: | yes |
| With DALI interface: | no |
| Extension input: | no |
| Forced switching on: | no |
| Suitable for ceiling mounting: | yes |
| Connection type: | other |
| Antibacterial treatment: | no |
| Min. inrush current: | 0.01 A |
