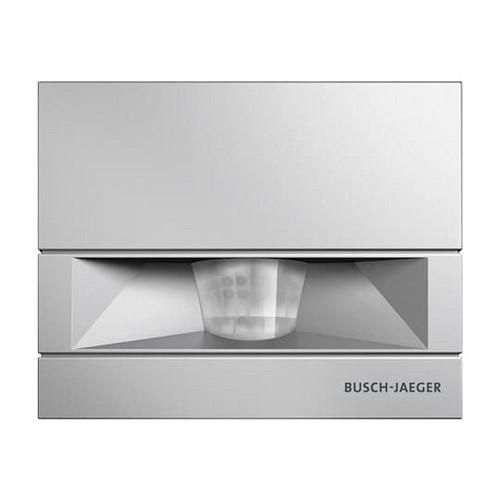

Busch-Wächter 110 MasterLINE, silver metallic, motion/presence detector, Busch-Wächter AP, Busch-Wächter 110 MasterLINE Electronic motion detector for detecting heat movements. Can be controlled remotely using IR hand-held transmitter 6841-101. Can be remotely parameterized using IR service hand-held transmitter 6842-101. With detection and operating mode display. With floor monitoring. With profile lens for best detection. Detection sensitivity can be adjusted using IR service hand-held transmitter. Detection area can be set using the rotary control. Monitoring density: 25 sectors with 100 switching segments. With integrated dismantling difficulty. All functions are microprocessor-controlled. Continuous light (4 hours), light switch-off (4 hours) and presence simulation can be activated using IR hand-held transmitter. Reading in the current brightness value as switching threshold using IR hand-held transmitter. With automatic range stabilization. With automatic interference suppression. With automatic glare protection. With brightness-independent test mode for evaluating the detection area. Individual adjustment of the detection area using the enclosed, cut-to-size cover film. Additional switch-on option using the opening button. Switch-off delay: 10 s to 30 min or short-term pulse 1 s adjustable. Nominal voltage: , +10 % / -10 % Nominal frequency: 50 Hz/60 Hz Outputs: 1x normally open contact, non-floating Load type: ohmic, capacitive and inductive Nominal current: 10 AX, at cos 0.6 Nominal power: 2300 W/VA Detection range: front: 12 m, side: 4 m Brightness limit: 3 lux to daytime operation Mounting height: 2.5 m Device protection class: IP 55 Device temperature range: -25 °C to 55 °C Dimensions (H x W x D): 100 mm x 125 mm x 33 mm
| Property | Value |
| Depth: | 33 mm |
| Width: | 125 mm |
| Height: | 100 mm |
| Design: | Motion detector |
| Color: | Silver |
| Rated voltage: | 230 V |
| Material: | Plastic |
| Mounting type: | Surface-mounted |
| Response brightness: | 3 to 150 lx |
| Protection class (IP): | IP55 |
| Max. switching power: | 2300 W |
| Voltage type: | AC |
| Max. range to one side: | 4 m |
| Scan angle: | 110 ° |
| Suitable for wall mounting: | yes |
| Min. duty cycle: | 10 s |
| Max. Duty cycle: | 30 min |
| Creep-under protection/rear field monitoring: | yes |
| Temperature: | -25 to 55 °C |
| Adjustable response brightness: | yes |
| Adjustable response sensitivity: | yes |
| Max. frontal range: | 12 m |
| Max. Inrush current: | 80 A |
| Sensor type: | passive infrared |
| Optimal mounting height: | 2.5 m |
| Surface finish: | matt |
| Surface: | untreated |
| Material quality: | thermoplastic |
| Number of switching zones: | 1 |
| Horizontal detection angle: | 8 to 110 ° |
| Frequency: | 50 to 60 Hz |
| Halogen-free: | yes |
| Constant light control: | no |
| HVAC control: | no |
| Forced shutdown: | yes |
| Animal corridor: | no |
| Networkable: | no |
| Staircase monitoring: | yes |
| Bypass switch: | no |
| Suitable for wireless transmission: | no |
| Remote controllable: | yes |
| With signal unit: | no |
| Alarm function: | no |
| Teach function for response brightness: | no |
| Dimming function with dimming insert: | no |
| Transparent: | no |
| With remote control: | no |
| Suitable for C load: | yes |
| With DALI interface: | no |
| Extension input: | no |
| Forced switching on: | yes |
| Suitable for ceiling mounting: | no |
| Connection type: | other |
| Antibacterial treatment: | no |
| Min. inrush current: | 0.01 A |
