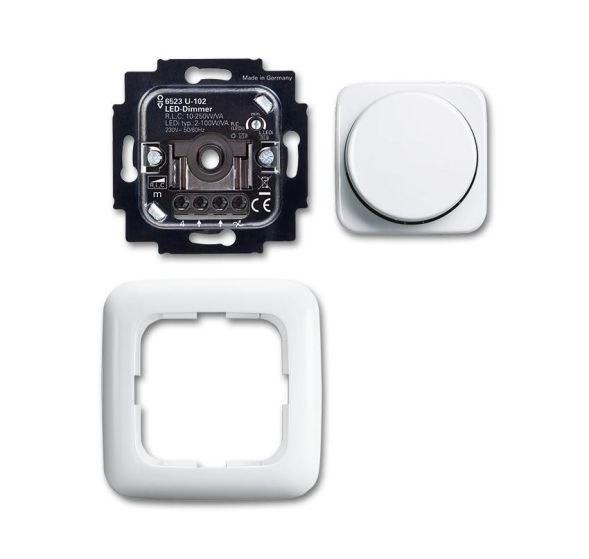

Busch rotary dimmer, alpine white, Busch dimmer, flush-mounted rotary dimmer, Busch rotary dimmer LED, complete set Consisting of Busch LED rotary dimmer 6523 U-102. Consisting of central disc with rotary knob 2115-214. Consisting of Reflex SI cover frame, 1-way 1721-214. Protection class device: IP 20 Temperature range device: 0 °C to 35 °C IEC 60669-2-1, British Standard EN 60669-2-1
Key Features
| Property | Value |
| Device height: | 32 mm |
| Device width: | 80 mm |
| Device depth: | 80 mm |
| Connection type: | Screw terminal |
| Mounting type: | Flush-mounted |
| Phase control dimming: | yes |
| Phase control dimming: | yes |
| Nominal voltage: | 207 to 253 V |
| Color: | white |
| Suitable for protection class (IP): | IP20 |
| Operating method: | Rotary/push button |
| Halogen-free: | no |
| Composition: | Basic element with full cover plate |
| Load type: | universal and LED retrofit |
| Series dimmer: | no |
| Extension input: | yes |
| Light value memory: | yes |
| Can be used with button: | no |
| Can be used with motion detector: | no |
| Can be used with Presence detector: | no |
| Can be used with timer: | no |
| Can be used with radio button: | no |
| Can be used with IR button: | no |
| Mounting type: | claw/screw fastening |
| Material: | plastic |
| Material quality: | thermoplastic |
| Surface: | untreated |
| Surface finish: | glossy |
| RAL number (similar): | 9010 |
| Frequency: | 50 to 60 Hz |
| App control via Bluetooth: | no |
| Impact resistance: | IK00 |
| Min. depth of the device box: | 40 mm |
The Busch-Jaeger 6523 UJ-214-102 Reflex SI LED Dimmer Set offers exceptional lighting control for modern interiors. Tailored specifically for LED lighting systems, this dimmer set ensures smooth, flicker-free dimming from 2W to 100W, making it a reliable and energy-efficient solution for various lighting setups, including LED, halogen, and incandescent bulbs. The Reflex SI series combines cutting-edge functionality with a sleek design, ideal for homes and offices looking for both performance and style.
Optimized for LED Systems: This dimmer set is designed to work seamlessly with LED lights, ensuring stable performance without the common flickering or buzzing issues that traditional dimmers may cause. It supports a dimming range from 2W to 100W, making it suitable for various low-energy lighting solutions.
Wide Compatibility: In addition to LEDs, the dimmer is compatible with incandescent and halogen lamps, providing flexibility for different lighting setups in your space.
Simple and Intuitive Control: The rotary knob design makes adjusting the lighting easy and precise. Whether you need soft, ambient lighting for relaxation or brighter settings for tasks, this dimmer allows you to tailor your lighting effortlessly.
Energy Efficiency: The Busch-Jaeger Reflex SI LED Dimmer Set helps optimize energy usage by allowing precise control over the light output. This not only reduces electricity consumption but also extends the lifespan of your bulbs, making it an environmentally-friendly choice.
Elegant Design for Modern Spaces:
The Reflex SI series is known for its sleek, minimalist design that blends into any modern interior. Whether installed in living rooms, offices, or commercial spaces, this dimmer set adds a subtle yet stylish touch to your lighting system.
