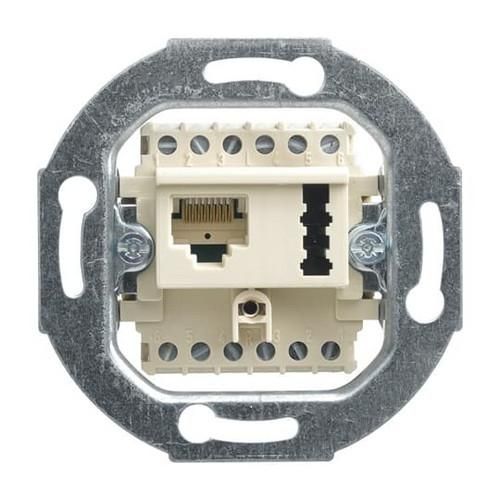

UAE 8 (6) /TAE 6F+N - connection box, white, flush-mounted boxes and inserts, inserts for data communication, UAE 8 (6) /TAE 6F+N - connection box 2 x 6-pin with straight outlet, with screw contacts. UAE: RJ 11/12, ISDN capable Cat. 3 according to IEC 603-7/DIN EN 60603-7, TAE: for 1 telephone, 1 additional device or 1 data terminal, with spreader. Protection class device: IP 20
| Property | Value |
| Designable: | yes |
| Category: | other |
| Surface-mounted: | no |
| Mounting type: | screws |
| Outlet direction: | straight |
| Sockets shielded: | no |
| Housing shielded: | no |
| Duct installation: | yes |
| Connector type: | other |
| Suitable for number of sockets/couplings: | 2 |
| Color coding: | no |
| Connection type: | screw |
| RAL number: | 1013 |
| Separate earthing connection: | no |
| Floor tank/underfloor installation: | no |
| With text field: | no |
| Separate cable strain relief: | no |
| With sockets/couplings: | no |
| Protection class (IP): | IP20 |
| Color: | white |
| Mechanical coding: | no |
| With dust protection: | no |
| Mounting type shield connection: | without |
| Composition: | Base element |
| Device width: | 71 mm |
| Device height: | 32 mm |
| Device depth: | 71 mm |
Features
With text field
No
Category
Other
Connector type
Other
HAB
UAE 8 (6) TAE 6 F+N
Manufacturer
HAN
2CKA000230A0381
GTIN
4011395048436
Connection type
Screw
Outlet direction
Straight
Mounting type
Screw
Shielded sockets
No
Color
Suitable for number of sockets/couplings
2
Housing shielded
No
Device width
71 mm
Device height
32 mm
Device depth
71 mm
With bushings/couplings
No
With dust protection
No
RAL number
1013
IP protection)
IP20
Compilation
Basic element
