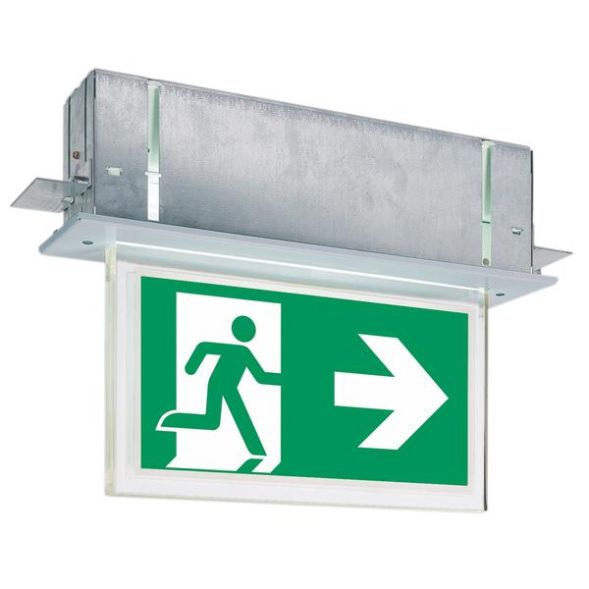

Single battery light including foil unit with test button and colored LEDs for differentiated status display for autonomous operation or for connection to the central monitoring device CGLine. Automatic function test (weekly) and automatic operating time test (every 3 months). 1 minute switch-back delay after power is restored. Blocking function via central monitoring device for idle times. Permissible temperature range: permanent light -5°C to +30°C / standby light 0°C to +35°C. The pictogram disc is not included in the scope of delivery and must be ordered separately. Mounting type: Built-in Light source: LED Lamp power: 5.5 W Housing material: Steel Housing color: white Type of marking: one-sided/two-sided Suitable for marking type: Acrylic glass plate Monitoring device: automatic self-test Ball-proof: No Switching type: Maintained/standby With remote switch connection (VDE 0100-718,0108-100): Yes Power supply: decentralized (single battery) Nominal voltage: 220 - 240 V Protection class: I Protection type (IP): IP20 Nominal operating time: 3 h With light source: Yes Installation length: 310 mm Installation width: 120 mm Installation depth: 72 mm Luminous flux in emergency operation: 46 % Detection range: 20 m
| Property | Value |
| Housing color: | white |
| Protection rating (IP): | IP20 |
| Protection class: | I |
| Voltage type: | AC |
| Nominal voltage: | 220 to 240 V |
| Detection range: | 20 m |
| Length: | 340 mm |
| Width: | 95 mm |
| Height/depth: | 50 mm |
| Max. System performance: | 5.7 W |
| Battery type: | Lithium-ion |
| Nominal operating time: | 1 to 8 h |
| Operating device: | LED operating device, voltage-controlled |
| Light source: | LED not replaceable |
| Impact resistance: | IK03 |
| Socket: | other |
| With remote switch connection: | yes |
| Cover material: | transparent plastic |
| Installation width: | 120 mm |
| With Light source: | yes |
| Installation length: | 310 mm |
| Monitoring device: | Monitoring module (centrally supplied system) |
| Mounting type: | Installation |
| Housing material: | steel |
| Type of marking: | one-sided/two-sided |
| Suitable for type of marking: | Acrylic glass plate |
| Feed: | decentralized (single battery) |
| Function: | Escape route marking |
| With pictogram: | no |
| Number of the luminaire heads: | 1 |
| Light distributor: | Diffuser lens/optics/panel |
| Rated service life L70/B50 at 25 °C: | 50000 h |
| Rated ambient temperature according to IEC 62722-2-1: | 5 to 35 °C |
| Power factor: | 0.89 |
| Type of wiring: | suitable for through-wiring |
| Number of poles: | 6 |
| Conductor cross-section: | 2.5 mm² |
| Connection type: | Plug connection |
