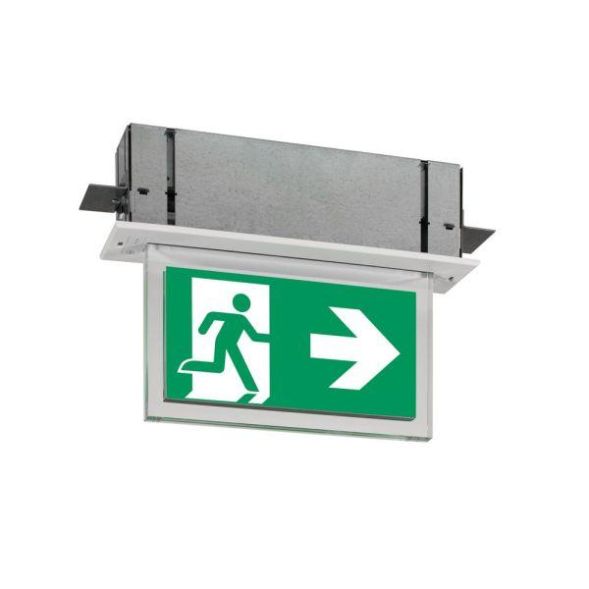

Single battery light including foil unit with test button and colored LEDs for differentiated status display for autonomous operation or for connection to the central monitoring device CGLine+. Automatic function test (weekly) and automatic operating time test (every 3 months). 1 minute switch-back delay after power is restored. Blocking function via central monitoring device for idle times. Permissible temperature range: permanent light -5°C to +30°C / standby light 0°C to +35°C. The pictogram disc is not included in the scope of delivery and must be ordered separately. Mounting type: built-in Light source: LED Lamp power: 6.7 W Housing material: steel Housing color: white Type of marking: one-sided/two-sided Suitable for marking type: acrylic glass plate Monitoring device: automatic self-test Ball-proof: No Switching type: permanent/standby With remote switch connection (VDE 0100-718,0108-100): Yes Power supply: decentralized (single battery) Nominal voltage: 220 - 240 V Protection class: I Protection type (IP): IP20 Nominal operating time: 3 h With light source: Yes Installation length: 370 mm Installation width: 120 mm Installation depth: 72 mm Luminous flux in emergency operation: 22 % Detection range: 28 m
| Property | Value |
| Housing color: | white |
| Protection rating (IP): | IP20 |
| Protection class: | I |
| Voltage type: | AC |
| Nominal voltage: | 220 to 240 V |
| Detection range: | 28 m |
| Length: | 340 mm |
| Width: | 95 mm |
| Height/depth: | 50 mm |
| Max. System performance: | 6.7 W |
| Battery type: | Lithium-ion |
| Nominal operating time: | 1 to 8 h |
| Operating device: | LED operating device, voltage-controlled |
| Light source: | LED not replaceable |
| Impact resistance: | IK03 |
| Socket: | other |
| With remote switch connection: | yes |
| Cover material: | transparent plastic |
| Installation width: | 120 mm |
| With Light source: | yes |
| Installation length: | 370 mm |
| Monitoring device: | Monitoring module (centrally supplied system) |
| Mounting type: | Installation |
| Housing material: | steel |
| Type of marking: | one-sided/two-sided |
| Suitable for marking type: | Acrylic glass plate |
| Feed: | decentralized (single battery) |
| Function: | Escape route marking |
| With pictogram: | no |
| Number of the luminaire heads: | 1 |
| Light distributor: | Diffuser lens/optics/panel |
| Rated service life L70/B50 at 25 °C: | 50000 h |
| Rated ambient temperature according to IEC 62722-2-1: | 5 to 35 °C |
| Power factor: | 0.89 |
| Type of wiring: | suitable for through-wiring |
| Number of poles: | 6 |
| Conductor cross-section: | 2.5 mm² |
| Connection type: | Plug connection |
