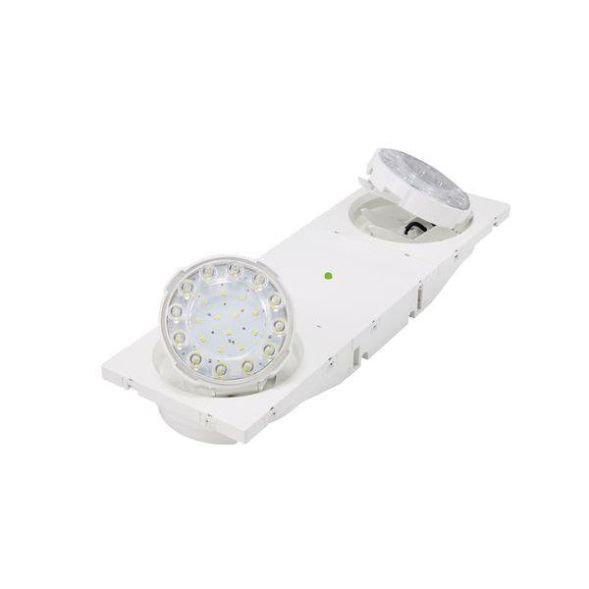

BeamTech 2 LED spotlight CGL+, emergency light duration 1 h (user-friendly selection via a button for the configuration of the escape route or area illumination), 2x250 lm, protection class IP65, protection class 2, flexible and adjustable LED spotlight, for wall or ceiling mounting (recessed mounting optional)
| Property | Value |
| Rated luminous flux according to IEC 62722-2-1: | 500 lm |
| Protection class (IP): | IP65 |
| Impact resistance: | IK07 |
| Protection class: | II |
| Rated ambient temperature according to IEC62722-2-1: | 40 - 5 °C |
| Length: | 466 mm |
| Width: | 155 mm |
| Height/depth: | 69 mm |
| Voltage type: | AC |
| Nominal voltage: | 220 - 240 V |
| Max. System power: | 1.6 W |
| Power factor: | 0.7 |
| Operating device: | not required |
| Connection type: | plug connection |
| Number of poles: | 3 |
| Type of wiring: | suitable for through-wiring |
| With light source: | yes |
| Light source: | LED not replaceable |
| Light distributor: | refractor lens |
| Housing color: | white |
| Material of Housing: | Plastic |
| Cover material: | Plastic transparent |
| Packaging unit: | 1 |
| Weight: | 1.36 |
| Weight unit: | KG |
| Weight reference quantity: | 1 |
| Socket: | without |
| Conductor cross-section: | 1.5 mm² |
| Feed: | decentralized (single battery) |
| Suitable for labeling type: | other |
| Number of Lamp heads: | 2 |
| Battery quality: | NiCd |
| Suitable for number of lamps: | 2 |
| Monitoring device: | Monitoring module (centrally supplied system) |
| Nominal operating time: | 1 h |
| Brief description: | BeamTech 2 LED spotlight CGL+, emergency light duration 1 h |
Features
HAB
BeamTech 2 emitters CGL+ 1h
Manufacturer
HAN
BT2SC-D1CGL
GTIN
5205050909937
Connection type
Plug connection
Type of wiring
Suitable for through wiring
Rated luminous flux according to IEC 62722-2-1
500lm
Rated ambient temperature according to IEC62722-2-1
40 - 5 °C
Operating device
Not required
Width
155 mm
Version
Without
Suitable for number of lamps
2
Housing color
White
Weight
1,36
Weight unit
kg
Height/Depth
69 mm
Short description
BeamTech 2 LED spotlight CGL+, emergency light duration 1 h
Power factor
0.7
Conductor cross-section
1.5 mm²
Lamps
LED not replaceable
Light distributor
Refractor lens
Length
466 mm
Max. system performance
1.6W
With light source
Yes
Nominal voltage
220 - 240V
Number of poles
3
Impact resistance
IK07
IP protection)
IP65
Protection class
II
Voltage type
AC
Packaging Unit
1
Cover material
Plastic transparent
Housing material
Plastic
