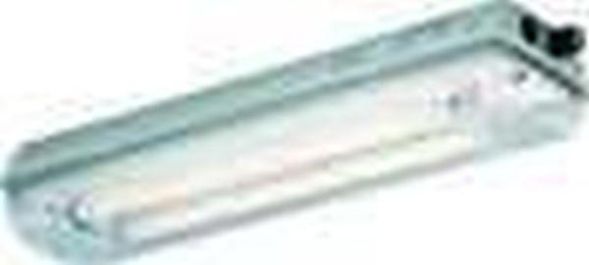

Ex luminaire for fluorescent lamps for zone 1/21, eLLK 92036 (1 x 36 W), 1/6-1K, cable entries: 2 x M25, plastic, standard two-channel electronic ballast with EOL monitoring, for lamps (not included): 1 x 36 W fluorescent lamp T8, nominal lamp luminous flux: 3350 lm (lamp dependent), lamp base: G13 in accordance with IEC 60061, two-sided through-wiring: no, cable entries/housing holes: 2 x Ex-e cable entries M25 x 1.5 (plastic) for Ø 8 - 17 mm, housing material: glass fiber reinforced polyester, protective hood/protective cover: polycarbonate, rated voltage: 110 - 254 V AC / 110 - 250 V DC, frequency: 50 - 60 Hz, Rated current: 0.18 A, Marking according to 94/9/EC: Ex II 2 G Ex de IIC T4 Gb, Ex II 2 D Ex tb IIIC T80 °C Db IP66, EC type examination certificate: BVS 09 ATEX E 034, Permissible ambient temperature: -25 °C to 55 °C, Dimensions (L x W x H): 1360 x 188 x 130 mm, Weight: 6.2 kg, Protection class: I, Protection type according to EN 60529: IP66, Housing material: Plastic, Suitable for number of lamps: 1, Lamp power: 36 W, Nominal voltage: 110 - 254 V, Lamp: Fluorescent lamp, Socket: G13, Adjustable: No, Protection class: I, For Ex zone gas: 1, 2, For Ex zone dust: 21, 22, With Motion detector: No, Control gear included: Yes, Protection class (IP): IP66, Mechanical shielding: Yes, With light source: No, Length: 1360 mm, Width: 188 mm, Height/depth: 130 mm
