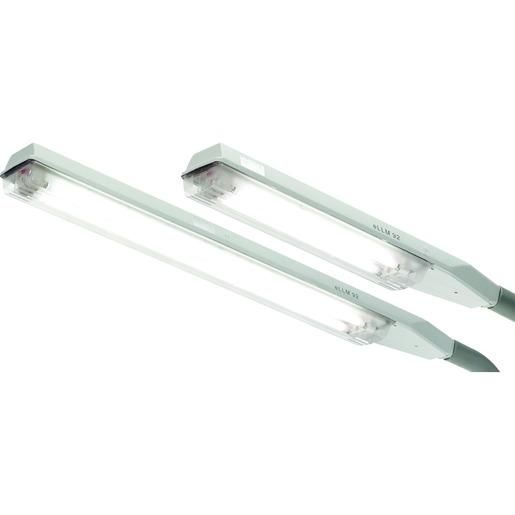

Ex mast luminaire for fluorescent lamps for zone 1/21, eLLM 92018/18 (2 x 18 W), 1/3-1K, cable entries: 1 x M25, plastic, standard two-channel electronic ballast with EOL monitoring, fluorescent lamp T8, lamp base: G13 according to IEC 60061, two-sided through-wiring: no, cable entries/housing holes: 1 x Ex-e cable entries M25 x 1.5 (plastic) for Ø 8 - 17 mm, housing material: glass fiber reinforced polyester, protective hood/protective cover: polycarbonate, frequency: 50 - 60 Hz, rated current: 0.18 A, marking according to 94/9/EC: Ex II 2 G Ex de IIC T4 Gb, Ex II 2 D Ex tb IIIC T80 °C Db IP66, EC type examination certificate: BVS 09 ATEX E 034, Permissible ambient temperature: -25 °C to 55 °C, Dimensions (L x W x H): 1060 x 188 x 130 mm, Weight: 7.1 kg, Protection class: I, Protection class according to EN 60529: IP66, Mast attachment: Ø 44 mm x 150 mm, Housing material: Plastic, Suitable for number of lamps: 2, Lamp power: 18 W, Nominal voltage: 110 - 254 V, Lamp: Fluorescent lamp, Socket: G13, Adjustable: No, Protection class: I, For Ex zone gas: 1, 2, For Ex zone dust: 21, 22, With motion detector: No, Operating device included: Yes, Protection class (IP): IP66, Mechanical shielding: Yes, With lamp: No, Length: 760 mm, width: 188 mm, height/depth: 130 mm
