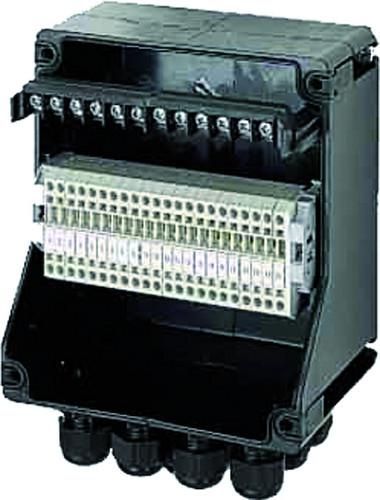

CEAG emergency light CEAG EX-TERMINAL BOX 1XM32 SCREW TERMINALS 24X2.5

Ex-e terminal box GHG 721 0, housing. Material: glass fiber reinforced polyester, 24 x 2.5 mm² + 12x2x2.5 mm² PE, screw terminals, 1 x M32 cable entry, 12x M20 cable entry, directly drilled housing, type of terminals: Phoenix Ex-e screw terminals, 24 x 2.5 mm², PE rail 1 x 12x2x2.5 mm², cable entries/housing holes: 1 x M32 cable entry for Ø 12 mm - 21 mm, 12 x M20 cable entry for Ø 13 mm - 13 mm, housing material: glass fiber reinforced polyester, rated voltage: 690 V, rated current: depends on the terminal configuration, marking according to 94/9/EC: Ex II 2 G Ex e IIC T4/ T5/ T6 Gb, Ex II 2 D Ex tb IIIC T80°C / T95°C Db IP6X, EC type examination certificate: BVS 13 ATEX E 013 X, Permissible ambient temperature: -20 °C to 40 °C, Dimensions (L x W x H): 165 x 165 x 131.5 mm, Weight: 1.1 kg, Protection class: I, Degree of protection according to EN 60529: IP66,, Number of connection terminals: 24, Max. conductor cross-section: 2.5 mm², Length: 140 mm, Width: 120 mm, Depth: 95 mm, Mounting type: Surface-mounted, Attachment option: No, Number of entries: 13, Type of entry: Screw connection, Material: Plastic, Halogen-free: Yes, Surface: untreated, Color: black, Degree of protection (IP): IP66, With cover: Yes, Cover fastening: screwed, With transparent cover: No, Sealable: No, Rated insulation voltage Ui: 690 V, Functional integrity: without, Operating temperature: -20 - 40 °C, Explosion-tested version: Yes, For Ex zone gas: 1, 2, For Ex zone dust: 21, 22
