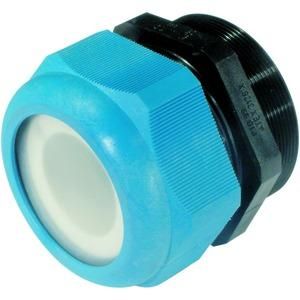

Ex-i cable entry polyamide, IP66 / IP68 - 0.1 bar, M40, clamping range 17 - 28 mmN/A, housing material: polyamide, wrench size: 46, marking according to 94/9/EC: Ex II 2 G Ex e II / Ex II 2 D Ex tD A21 IP66, EC type examination certificate: PTB 99 ATEX 3101 X (M12-M16) / PTB 99 ATEX 3128 X (M20-M63), permissible ambient temperature: -20 °C to 70 °C, protection class according to EN 60529: IP66 / IP68 - 0.1 bar,, thread type: metric, nominal thread size metric/PG: 40, thread pitch: 1.5 mm, thread length: 15 mm, wrench size: 46 mm, hexagon corner dimension: 50.6 mm, For cable diameters: 17 - 28 mm, Material: Plastic, Material quality: Polyamide, Surface: untreated, Halogen-free: Yes, Glass fiber reinforced: No, Protection class (IP): IP66, Impact resistant: Yes, Color: black, Bending protection: No, With lock nut: No, Design: straight, Multiple sealing insert: No, Flat cable gland: No, Strain relief: No, Type of seal: Sealing ring, Separable screw connection: No, Operating temperature: -20 - +70 °C, Explosion-tested design: Yes, For Ex zone gas: 1, 2, For Ex zone dust: 21, 22
| Property | Value |
| Protection class (IP): | IP66 |
| Commodity number: | 74153300 |
| Colour: | black |
| Halogen-free: | yes |
| Impact-resistant: | yes |
| Type of seal: | Sealing ring |
| Hexagon corner dimension: | 50.6 mm |
| Suitable for cable diameters: | 19 - 28 mm |
| Wrench size: | 46 mm |
| Thread length: | 15 mm |
| Thread pitch: | 1.5 mm |
| Nominal thread size metric/PG: | 40 |
| Material quality: | Polyamide (PA) |
| Operating temperature: | +70 - -20 °C |
| Thread type: | metric |
| Material: | plastic |
| Design: | straight |
| Surface: | untreated |
