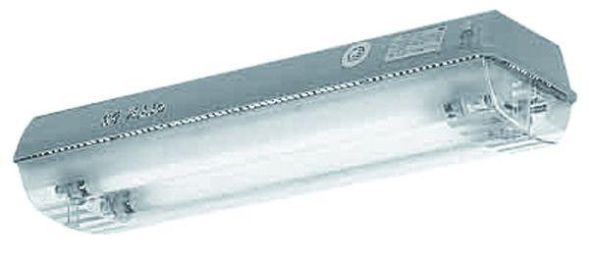

Ex luminaire for fluorescent lamps for zone 2/21/22, nLLK 08018/18 (2 x 18 W), 1/3-1K, cable entries: 1 x M25, plastic, standard electronic ballast with EOL monitoring, for lamps (not included): 2 x 18 W fluorescent lamp T8, nominal lamp luminous flux: 2700 lm (depending on lamp), lamp base: G13 in accordance with IEC 60061, two-sided through-wiring: no, cable entries/housing holes: Ex-e cable entries M25 x 1.5 (plastic) for cables Ø 8 - 17 mm, housing material: glass fiber reinforced polyester, protective hood/protective cover: polycarbonate, rated voltage: 220 - 240 V AC / 220 - 240 V DC, frequency: 50 - 60 Hz, Rated current: 0.16 A, Marking according to 94/9/EC: Ex II 3 G Ex nA e IIC T4 Gc, Ex II 3 D tc IIIC T80 °C Dc, Ex II 2 D Ex tb IIIC T80 °C Db, EC type examination certificate: BVS 09 ATEX E 162, Permissible ambient temperature: -25 °C to 50 °C, Dimensions (L x W x H): 760 x 188 x 130 mm, Weight: 3.6 kg, Protection class: I, Protection type according to EN 60529: IP66, Housing material: Plastic, Suitable for number of lamps: 2, Lamp power: 18 W, Nominal voltage: 110 - 254 V, Lamp: Fluorescent lamp, Socket: G13, Adjustable: No, Protection class: I, For Ex zone gas: 1, 2, For Ex zone dust: 21, 22, With motion detector: No, Operating device included: Yes, Protection class (IP): IP66, Mechanical shielding: Yes, With light source: No, Length: 760 mm, Width: 188 mm, Height/depth: 130 mm
| Property | Value |
| Protection rating (IP): | IP65 |
| Protection class: | I |
| Suitable for number of light sources: | 2 |
