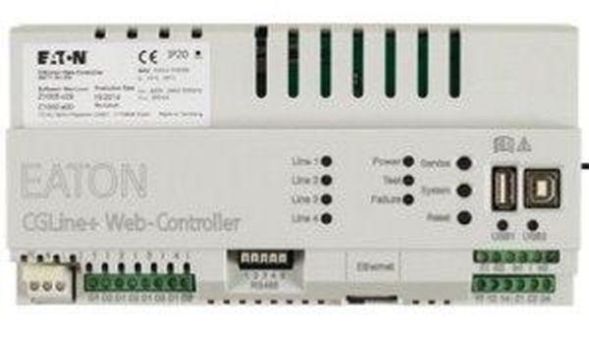

CEAG emergency light for CGLine+ luminaires CGLine+Web-Controller monitoring module

Automatic testing and control system in accordance with DIN EN 62034 for up to 800 CGLine+ self-contained lights, divisible into 4 strands of 200 lights each (or 2 strands of 400 lights each). For emergency lighting installations in accordance with DIN EN 50172, DIN VV 0108-100 and DIN0100-560. An integrated web server enables convenient visualization, control and monitoring of all connected CGLine+ lights from any workstation PC in the intranet using a standard web browser without any additional special software. All data and commands are transmitted from the lights to the CGLine+ web controller via an unshielded 2-core bus cable (e.g. JY(ST)Y 2 x 2 x 0.8), which can be installed in a free topology, without bus terminating resistors. In the CGLine+ system, the lights do not have to be addressed manually. All CGLine+ lights are given a unique address at the factory, a 6-digit ID number in HEX code. This is used to automatically recognize all connected lights on the controller during commissioning. In addition, each individual light can be assigned a numerical short address and an individual name (up to 20 characters) during configuration. This makes it possible to use this identification, for example, as a location name. The installed CGLine+ lights can be physically divided into 4 strands. In addition, the lights can be freely assigned logically into up to 8 zones per strand. Zones can be areas in which the lights are to be spatially grouped together, e.g. on one floor, in one area or just for one room. If only 2 strands are used, a division into up to 16 zones per strand is possible. Function and operating time tests are started automatically by the CGLine+ web controller. For this purpose, the lights can be divided into up to 8 different test groups, for example to avoid problems with lights installed next to each other.
