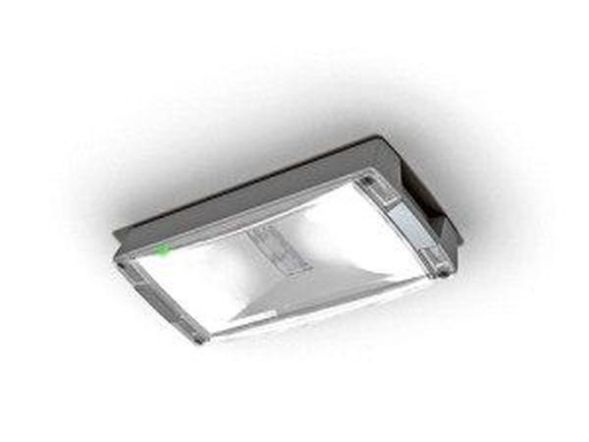

Single battery light for autonomous operation (including colored LED for differentiated status display) or for connection to central monitoring device CGLine+. Automatic function test (weekly) and automatic operating time test (every 6 months) can be switched off optionally with reminder of due BT after 12 months. Manual function test or operating time test can be triggered by magnet. Emergency light operating time freely selectable: 1 h, 3 h or 8 h, long service life 50,000 h, 1 minute switch-back delay after power is restored. Blocking function via central monitoring device for operating idle times. Permissible temperature range: permanent light -5°C to +30°C / standby light 0°C to + 35°C. Light control using double lens technology. Asymmetrical optics for particularly efficient escape route illumination. Mounting type: Ceiling mounting Light source: LED Lamp power: 7.0 W Housing material: Aluminium Housing colour: grey Cover material: Transparent plastic Type of marking: not applicable Monitoring device: automatic self-test Ball-proof: No Switching type: Maintained/standby With remote switch connection (VDE 0100-718,0108-100): Yes Power supply: decentralised (single battery) Nominal voltage: 220 - 240 V Protection class: I Protection type (IP): IP65 Nominal operating time: 3 h With light source: Yes Length: 303 mm Width: 136 mm Height/depth: 62 mm Luminous flux in emergency operation: 65 %
| Property | Value |
| Housing color: | gray |
| Protection rating (IP): | IP65 |
| Protection class: | I |
| Voltage type: | AC |
| Nominal voltage: | 220 to 240 V |
| Detection range: | 24 m |
| Length: | 303 mm |
| Width: | 135 mm |
| Height/depth: | 62 mm |
| Battery type: | Lithium-ion |
| Nominal operating time: | 1 to 8 h |
| Operating device: | LED operating device, current-controlled |
| Light source: | LED not replaceable |
| Impact resistance: | IK10 |
| Socket: | other |
| With remote switch connection: | yes |
| Cover material: | Transparent plastic |
| With light source: | yes |
| Monitoring device: | Monitoring module (centrally supplied System) |
| Material of the housing: | aluminium |
| Suitable for type of marking: | other |
| Feed-in: | decentralized (single battery) |
| With pictogram: | no |
| Number of lamp heads: | 1 |
| Light distributor: | Focus lens |
| Rated service life L70/B50 at 25 °C: | 13.88888888888806 h |
| Luminaire with limited surface temperature D-mark according to EN 60598-2-24: | yes |
| Power factor: | 0.91 |
| Wiring type: | suitable for through wiring |
| Number of poles: | 6 |
| Conductor cross-section: | 2.5 mm² |
| Connection type: | Plug connection |
