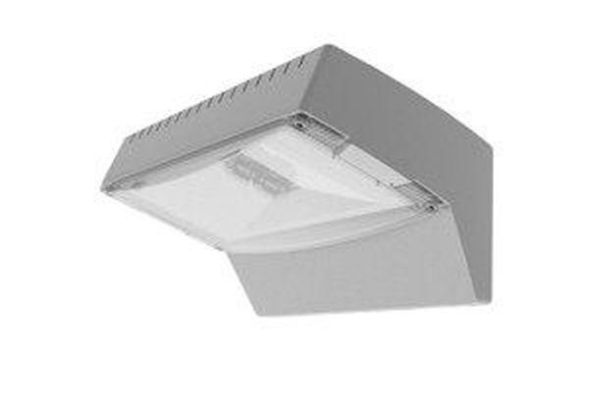

Single battery light for autonomous operation (including colored LED for differentiated status display) or for connection to the central monitoring device CGLine+. Automatic function test (weekly) and automatic operating time test (every 6 months) can be switched off optionally with reminder of due BT after 12 months. Manual function test or operating time test can be triggered by magnet. Emergency light operating time freely selectable: 1 h, 3 h or 8 h, long service life 50,000 h, 1 minute switch-back delay after power returns. Blocking function via central monitoring device for operating idle times. Permissible temperature range: permanent light -5°C to +30°C / standby light 0°C to + 35°C. Light exit inclined to illuminate the escape route along the wall. Light control using double lens technology. Asymmetrical optics for particularly efficient escape route illumination. Mounting type: Wall mounting Light source: LED Lamp power: 7.0 W Housing material: Aluminium Housing colour: grey Cover material: Transparent plastic Type of marking: not applicable Monitoring device: automatic self-test Ball-proof: No Switching type: Maintained/standby With remote switch connection (VDE 0100-718,0108-100): Yes Power supply: decentralised (single battery) Nominal voltage: 220 - 240 V Protection class: I Protection type (IP): IP65 Nominal operating time: 3 h With light source: Yes Length: 303 mm Width: 184 mm Height/depth: 160 mm Luminous flux in emergency operation: 65 %
| Property | Value |
| Housing color: | gray |
| Protection rating (IP): | IP65 |
| Protection class: | I |
| Voltage type: | AC |
| Nominal voltage: | 220 to 240 V |
| Color temperature: | 6500 K |
| Length: | 303 mm |
| Width: | 184 mm |
| Height/depth: | 160 mm |
| Max. System performance: | 7 W |
| Battery type: | Lithium-ion |
| Nominal operating time: | 1 to 8 h |
| Rated luminous flux according to IEC 62722-2-1: | 250 lm |
| Operating device: | LED operating device, current-controlled |
| Light source: | LED not replaceable |
| Impact resistance: | IK10 |
| Socket: | without |
| With remote switch connection: | yes |
| Cover material: | Plastic transparent |
| With light source: | yes |
| Monitoring device: | Monitoring module (centrally supplied system) |
| Mounting type: | Wall mounting |
| Material of the housing: | Aluminium |
| Suitable for type of marking: | other |
| Feed: | decentralized (single battery) |
| With pictogram: | no |
| Number of lamp heads: | 1 |
| Light distributor: | Focus lens |
| Rated service life L70/B50 at 25 °C: | 50000 h |
| Luminaire with limited surface temperature D-mark according to EN 60598-2-24: | yes |
| Rated ambient temperature according to IEC 62722-2-1: | 5 to 35 °C |
| Power factor: | 0.91 |
| Type of wiring: | suitable for through-wiring |
| Number of poles: | 6 |
| Conductor cross-section: | 2.5 mm² |
| Connection type: | Plug connection |
