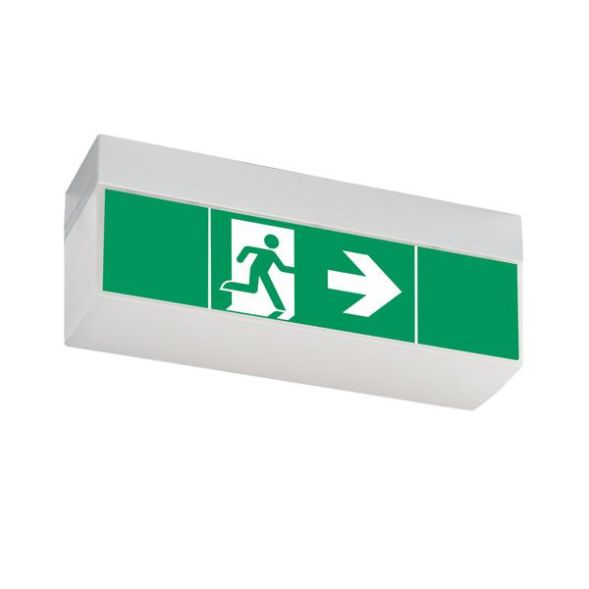

Self-contained light including high cover, 3 pictogram films (arrow left, right and bottom) in accordance with ISO 7010, film unit with test button and colored LEDs for differentiated status display for autonomous operation or for connection to the central monitoring device CGLine+. Automatic function test (weekly) and automatic operating time test (every 3 months). 1 minute switch-back delay after power is restored. Blocking function via central monitoring device for operating idle times. Permissible temperature range: permanent light -5°C to +30°C / standby light 0°C to +35°C. Mounting type: Wall mounting Light source: LED Lamp power: 6.6 W Housing material: Plastic Housing color: gray Type of marking: one-sided/two-sided Suitable for marking type: Sticker Monitoring device: automatic self-test Ball-proof: No Switching type: Maintained/standby With remote switch connection (VDE 0100-718,0108-100): Yes Power supply: decentralized (single battery) Nominal voltage: 220 - 240 V Protection class: II Protection type (IP): IP41 Nominal operating time: 3 h With light source: Yes Length: 340 mm Width: 95 mm Height/depth: 137 mm Luminous flux in emergency operation: 70 % Detection range: 17 m
| Property | Value |
| Housing color: | gray |
| Protection rating (IP): | IP41 |
| Protection class: | II |
| Voltage type: | AC |
| Nominal voltage: | 220 to 240 V |
| Detection range: | 17 m |
| Length: | 342 mm |
| Width: | 137 mm |
| Height/depth: | 75 mm |
| Max. System performance: | 6.6 W |
| Battery type: | Lithium-ion |
| Nominal operating time: | 1 to 8 h |
| Operating device: | LED operating device, current-controlled |
| Light source: | LED not replaceable |
| Impact resistance: | IK03 |
| Socket: | other |
| With remote switch connection: | yes |
| Cover material: | Plastic opal |
| Installation width: | 220 mm |
| With Light source: | yes |
| Installation length: | 350 mm |
| Monitoring device: | Monitoring module (centrally supplied system) |
| Housing material: | Plastic |
| Type of marking: | one-/two-sided |
| Suitable for type of marking: | sticker |
| Feed: | decentralized (single battery) |
| With pictogram: | yes |
| Number of Luminaire heads: | 1 |
| Light distributor: | Diffuser lens/optics/panel |
| Rated service life L70/B50 at 25 °C: | 50000 h |
| Luminaire with limited surface temperature D-mark according to EN 60598-2-24: | no |
| Rated ambient temperature according to IEC 62722-2-1: | 5 to 35 °C |
| Power factor: | 0.93 |
| Type of wiring: | suitable for Through wiring |
| Number of poles: | 6 |
| Conductor cross-section: | 2.5 mm² |
| Connection type: | Plug connection |
