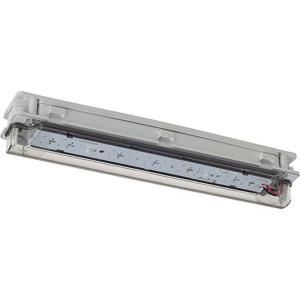

Safety light in accordance with DIN EN 60598-1, DIN EN 60598-2-22 and DIN EN 1838. Modular light consisting of: quick assembly kit, clear IP54 protective cover, light housing made of 850°C glow wire-resistant, halogen-free polycarbonate for tool-free assembly on the quick assembly kit. Symmetrical light distribution for surface illumination with at least 1lx in accordance with DIN EN 1838 for light point heights of up to 9 m. Maximum distance between lights: > 12 m from 3 m light point height and > 14 m from 5 m light point height (calculation basis: at least 1lx in the middle of the escape route, maintenance factor = 0.8). Long service life > 50,000 h thanks to optimized LED operating conditions. Special LED converter with integrated monitoring module for individual light monitoring with 20-digit address switches. Mixed operation of the switching types (standby light, permanent light or switched permanent light) within one circuit without additional data or switching lines to the lights in conjunction with suitable group or central battery systems with STAR technology is possible. Permissible temperature range: -20°C to + 40°C. Mounting type: Ceiling mounting Light source: LED Lamp power: 4 W Switching: Other Housing material: Plastic Housing color: Gray Cover material: Transparent plastic Type of marking: Not applicable Monitoring device: Monitoring module (centrally supplied system) Ball-proof: No Switching type: Maintained operation/standby operation With remote switch connection (VDE 0100-718,0108-100): Yes Feed: Central (central battery) Nominal voltage: 220 - 240 V Protection class: II Protection type (IP): IP54 With light source: Yes Length: 331 mm Width: 64 mm Height/depth: 55 mm Luminous flux in emergency operation: 100 %
