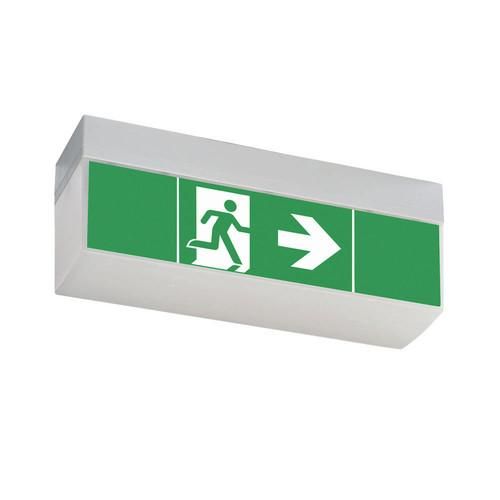

Single battery light including high cover, 3 pictogram films (arrow left, right and bottom) in accordance with ISO 7010 and a green LED for the charge control display. Permissible temperature range: continuous light -5°C to +30°C / standby light 0°C to +35°C. Mounting type: Ceiling mounting Light source: LED Lamp power: 1.8 W Housing material: Plastic Housing color: gray Cover material: Plastic, opal Type of marking: one-sided/two-sided Suitable for type of marking: Sticker Monitoring device: Test button Ball-proof: No Switching type: Maintained/standby With remote switch connection (VDE 0100-718,0108-100): No Power supply: decentralized (single battery) Nominal voltage: 230 - 230 V Protection class: II Protection type (IP): IP41 Nominal operating time: 3 h With light source: Yes Length: 340 mm Width: 95 mm Height/depth: 137 mm Luminous flux in emergency operation: 100 % Detection range: 17 m
| Property | Value |
| Housing color: | gray |
| Protection rating (IP): | IP41 |
| Protection class: | II |
| Voltage type: | AC |
| Nominal voltage: | 220 to 240 V |
| Detection range: | 17 m |
| Length: | 340 mm |
| Width: | 95 mm |
| Height/depth: | 137 mm |
| Max. System performance: | 5 W |
| Battery type: | NiCd |
| Nominal operating time: | 3 h |
| Operating device: | LED operating device, voltage controlled |
| Light source: | LED not replaceable |
| Impact resistance: | IK03 |
| Socket: | other |
| With remote switch connection: | yes |
| Cover material: | Plastic opal |
| With Light source: | yes |
| Monitoring device: | without |
| Housing material: | plastic |
| Type of marking: | one-sided/two-sided |
| Suitable for marking type: | sticker |
| Feed: | decentralized (single battery) |
| Function: | Escape route marking |
| With pictogram: | yes |
| Number of light heads: | 1 |
| Rated service life L70/B50 at 25 °C: | 50000 h |
| Rated ambient temperature according to IEC 62722-2-1: | 0 to 30 °C |
| Power factor: | 0.5 |
| Type of wiring: | suitable for through wiring |
| Number of poles: | 4 |
| Conductor cross-section: | 2.5 mm² |
| Connection type: | Plug connection |
