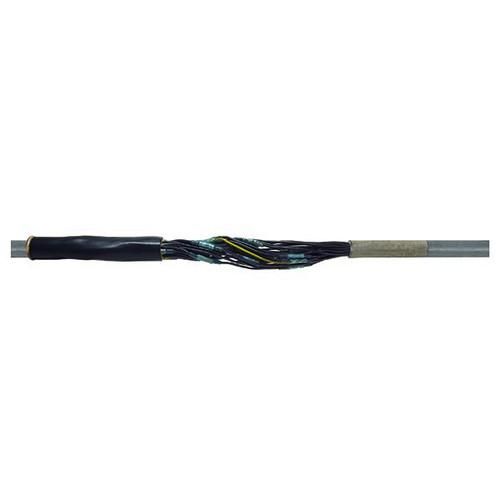

Heat-shrinkable connection sleeve for universal use for connecting control and signal cables. With heat-shrinkable crimp connectors on copper conductors. Areas of application: Indoors, outdoors, soil, water, installation ducts, empty pipes. Properties: Compact dimensions, resistant to chemical influences, resistant to alkaline earths, stabilized against UV rays, free from substances that impair paint wetting, halogen-free, transversely watertight, high electrical insulation values, high mechanical strength. Scope of delivery: Outer sleeve, inner sleeves, heat-shrinkable crimp connectors, cleaning cloth, emery cloth, assembly instructions.
| Property | Value |
| Nominal conductor cross-section: | 1.5 to 2.5 mm² |
| Number of conductors: | 24 |
| Halogen-free: | yes |
| Design: | Heat shrink |
| Mining approval: | no |
| With concentric shielding: | no |
| For connecting paper-insulated cables with plastic-insulated cables: | no |
| Suitable for: | H07RN-F |
| Rated voltage U0/U (Um): | 0.6/1 (1.2) kV |
| Insulating material: | Plastic |
| Connection accessories included: | Press/crimp connectors |
Features
Number of conductors
24
Connection accessories included
Press/crimp connectors
Nominal conductor cross-section
1.5 to 2.5 mm²
Rated voltage U0/U (Um)
0,6/1 (1,2) kV
With concentric shielding
No
For connecting paper-insulated cables with plastic-insulated cables
No
HAB
SMH18/24 1.5-2.5
Manufacturer
HAN
145493
GTIN
4010311005355
Version
Heat shrink
Mining license
No
Suitable for
H07RN-F
Halogen free
Yes
Material of the insulation material
Plastic
