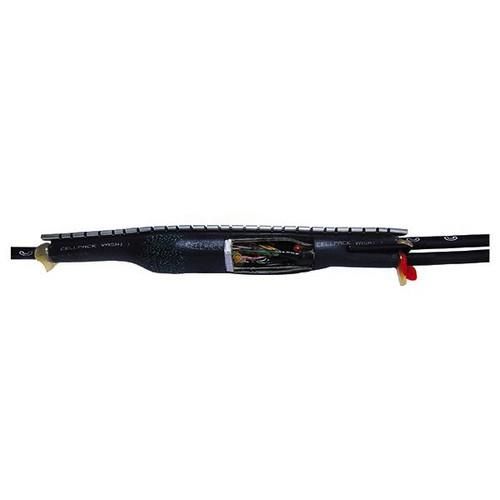

Heat-shrinkable connection sleeve for connecting and creating cable branches of telecommunications cables with PVC and PE core insulation with a layered outer sheath. Suitable for core connectors. Areas of application: Indoors (also with high moisture exposure), outdoors, soil, water, installation ducts, empty pipes. Properties: Compact dimensions, with temperature indicator color, suitable for cut and uncut cables, removable (for repair purposes, switching), resistant to chemical influences, resistant to alkaline earths, stabilized against UV rays, free from substances that impair paint wetting, halogen-free, waterproof and moisture-proof. Scope of delivery: Shrink sleeve, flexible locking rail, protective insert, desiccant, shield connection cable with connection terminals, flame retardant film, PVC insulation tape, cleaning cloth, emery cloth, assembly instructions.
| Property | Value |
| Nominal conductor cross-section: | 15 to 55 mm² |
| Number of conductors: | 30 |
| Halogen-free: | yes |
| Design: | Heat shrink |
| Mining approval: | no |
| With concentric shielding: | no |
| For connecting paper-insulated cables with plastic-insulated cables: | no |
| Suitable for: | other |
| Rated voltage U0/U (Um): | 0.6/1 (1.2) kV |
| Insulating material: | Plastic |
| Connection accessories supplied: | without |
