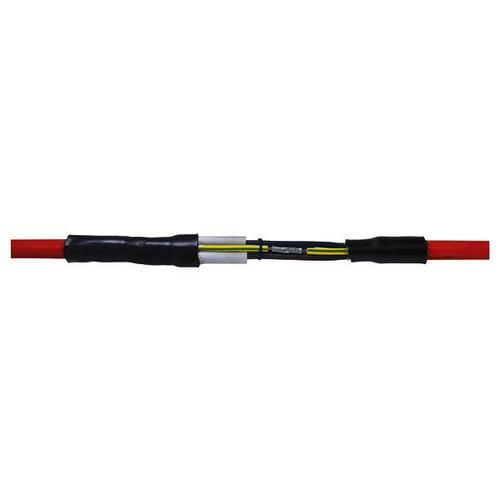

Heat-shrinkable connection sleeve (with concentric conductor) for connecting safety cables of the NHXH and NHXCH types wherever these are required, e.g. in power plants, chemical plants, public buildings, airports, tunnels, offshore facilities, fire alarm systems, stairwells, elevator shafts. Suitable for press connectors. Areas of application: indoors, outdoors, underground, installation ducts, empty pipes. Properties: compact dimensions, resistant to chemical influences, resistant to alkaline earths, stabilized against UV rays, fire-resistant (see test), free from substances that impair paint wetting, halogen-free, transversely watertight, high electrical insulation values, low smoke development. Scope of delivery: inner sleeves, insulating pipes, outer sleeve, cleaning cloth, emery cloth, assembly instructions.
| Property | Value |
| Nominal conductor cross-section: | 70 to 95 mm² |
| Number of conductors: | 4 |
| Halogen-free: | yes |
| Design: | Heat shrink |
| Mining approval: | no |
| With concentric shielding: | yes |
| For connecting paper-insulated cables with plastic-insulated cables: | no |
| Suitable for: | other |
| Rated voltage U0/U (Um): | 0.6/1 (1.2) kV |
| Insulating material: | Plastic |
| Connection accessories supplied: | without |
