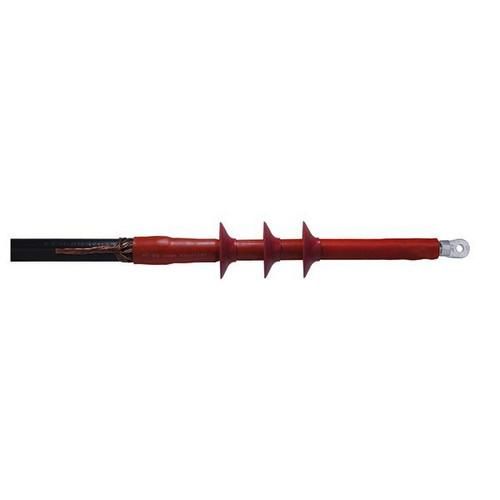

1-conductor outdoor termination suitable for all 1-conductor plastic cables (PVC, PE, VPE, EPR) with different conductive layers and shield designs. Suitable for compression or screw cable lugs. Areas of application: Outdoor. Properties: For all application conditions, safe field control through permanently elastic silicone field control elements, combination of slip-on and heat-shrink components, large cross-section range, quick, easy and safe installation, immediately ready for use. Scope of delivery: 1 set for 3 phases, heat-shrink tubing (tracking current-proof), silicone field control elements, silicone shields, sealing tape, small assembly materials, assembly instructions.
| Property | Value |
| Suitable for indoor use: | no |
| Suitable for outdoor use: | yes |
| Type of end closure: | Heat shrink |
| Material of the insulation material: | Plastic |
| Number of cores: | 1 |
| Cable lug included: | no |
| Nominal cross section: | 10 to 25 mm² |
Features
HAB
CHE-F 12kV 10-25
Manufacturer
HAN
194049
GTIN
4010311046891
Wire number
1
Suitable for outdoor use
Yes
Nominal cross section
10 to 25 mm²
Material of the insulation material
Plastic
