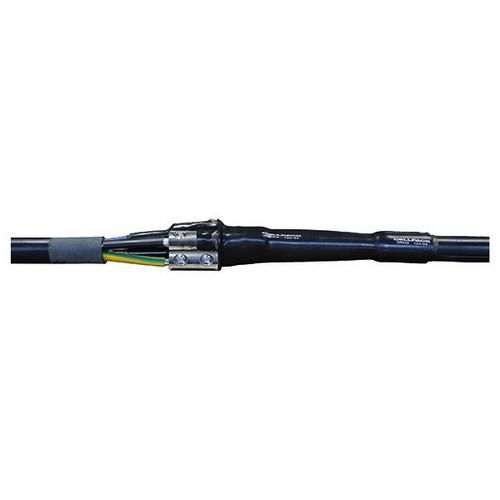

Heat shrink connection sleeve for universal use for connecting plastic cables and lines with insulation made of PVC, PE and VPE. With screw connectors with shear-head screws, suitable for aluminum and copper conductors. Areas of application: indoors, outdoors, soil, water, installation ducts, empty pipes. Properties: compact dimensions, large line and cable cross-section range, resistant to chemical influences, resistant to alkaline earths, stabilized against UV rays, free of substances that impair paint wetting, halogen-free, transversely watertight, high electrical insulation values, high mechanical strength. Scope of delivery: outer sleeve, inner sleeves, screw connector with shear-head screw, cleaning cloth, emery cloth, assembly instructions.
| Property | Value |
| Nominal conductor cross-section: | 95 to 240 mm² |
| Number of conductors: | 4 |
| Halogen-free: | yes |
| Design: | Heat shrink |
| Mining approval: | no |
| With concentric shielding: | no |
| For connecting paper-insulated cables with plastic-insulated cables: | no |
| Suitable for: | N(A)YY |
| Rated voltage U0/U (Um): | 0.6/1 (1.2) kV |
| Insulating material: | Plastic |
| Connection accessories included: | Screw connector with shear head |
