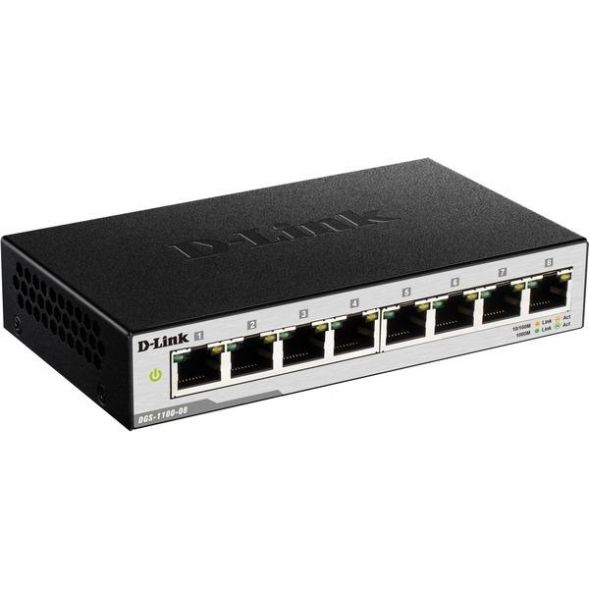

The DGS-1100-08 switch is part of the DGS-1100 series from D-Link. The DGS-1100 series EasySmart switches from D-Link are an affordable solution for home and small offices, small and medium-sized businesses and large companies that need easy network connectivity in branch offices or conference rooms. The models have a compact, table-sized metal housing and 8, 16 or 24 Gigabit Ethernet ports. The switches comply with the IEEE 802.3az standard for Energy Efficient Ethernet (EEE) and reduce their power consumption when the ports are not being used. The DGS-1100 series EasySmart switches have a web interface and support the SmartConsole utility. The SmartConsole utility automatically detects all D-Link Smart Switches in a Layer 2 network segment.
| Property | Value |
| Type: | Switch |
| EAN: | 0790069453410 |
| Manufacturer no.: | DGS-1100-08V2/E |
| Connections: | Network, RJ-45, 8x (of which: 8x 10/100/1000) |
| Routing & Switching: | Layer, Smart Managed, Layer 2 Switching, Layer 3 Switching |
| LEDs: | Activity, Power, LAN-Link LEDs: 8x |
| Feature: | Network: static Trunking (up to 4 ports in up to 8 groups), loopback detection, bandwidth management (port-based), 802.3x flow control, IGMP snooping, port mirroring, VLAN: 802.1Q VLAN support with up to 32 static groups, VIDs (1-4096), port-based VLAN, surveillance VLAN, 802.1Q tagged VLAN, Quality of Service (QoS): 802.1p port-based priority control with 4 queues, strict priority or weighted round robin (WRR), security: up to 128 static MAC addresses, broadcast/multicast/unknown unicast data packets storm control, management: web-based management, SmartConsole Windows utility, password control, configuration backup/restore, D-Link Green: automatic reduction of signal strength depending on cable length, automatic switching to power saving mode of unused ports, reduced power consumption, less heat generation, longer service life, lower operating costs, IEEE 802.3az EEE (Energy Efficient Ethernet) compatible |
| Further information: | RFC standards: RFC 768 UDP, RFC 791 IP, RFC 792 ICMP, RFC 793 TCP, RFC 826 ARP, RFC 951 BootP client, RFC 1542 BootP/DHCP client, RFC 1945 HTTP/1.0, RFC 2647 802.1p, RFC 2236, 4451 IGMP Snooping |
| Dimensions: | Width: 190 mm x Height: 38 mm x Depth/Length: 120 mm |
| Weight: | 706 grams |
