Dätwyler 186177 NHXH FE180 E90 Keram 3x2.5RE safety cable halogen-free orange

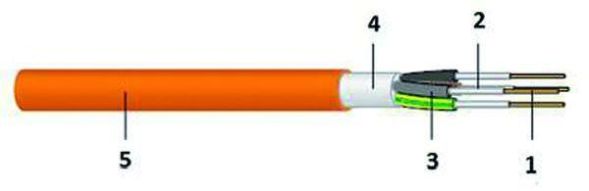

Based on DIN0266, nominal voltage: 0.6/1 kV, insulation integrity FE180, functional integrity E90 depending on the installation technique. Structure: single or multi-wire copper conductors, two-layer core insulation made of flame-retardant halogen-free special compound, common halogen-free core sheath, outer jacket made of halogen-free polyolefin mixture, jacket color: orange. Properties: For permanent installation in dry, damp or wet rooms on, in or under plaster as well as in masonry or concrete. The corresponding functional integrity is only guaranteed by tested and approved installation systems (cable trays and clamps, etc.). This halogen-free power cable with functional integrity does not develop any corrosive fire gases, has no fire propagation and minimal smoke development. It is used wherever special protection against fire and smoke and fire damage to people and property is required and high safety requirements must be met. Functional integrity is guaranteed at an operating voltage of up to 400 V, permissible operating temperature on the conductor: +90°C.
