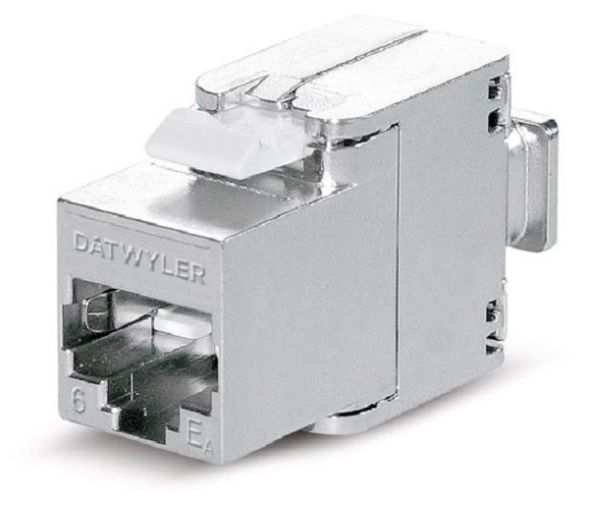

The KS-TS 6 module can be connected without special tools, which makes installation easier and reduces connection time. It is suitable for the transmission of digital and analog voice, image and data signals in accordance with application classes E and D. In conjunction with Cat. 7 or 7A data cables, the module is also suitable for applications in transmission class EA, i.e. for 10 Gigabit Ethernet in accordance with IEEE 802.3an. RJ45 module KS-TS 1/8 toolless slimline shielded Cat.6/EA in accordance with IEC 60603-7-51, shielded, for the transmission of digital and analog voice, image and data signals. The KS-TS module exceeds the product requirements of IEC 60603-7-51 for category 6 up to 250 MHz. In conjunction with Cat.7 and 7A data cables, it also meets the requirements for channel class EA up to 500 MHz. This makes it suitable for the transmission of 10 Gigabit Ethernet in accordance with IEEE 802.3an. The requirements for Power over Ethernet plus (PoE+) in accordance with IEEE 802.3at are fully met. The module can be connected without special tools, which reduces installation and connection times. Conductor diameter wire 0.50mm (AWG24) to 0.65mm (AWG22) Conductor diameter stranded wire AWG26/7 Rewirable
| Property | Value |
| Connection type: | LSA |
| Weight: | 0.02 |
| Weight unit: | KG |
| Commodity statistical number: | 85366990 |
| Connector type: | RJ45 8(8) |
