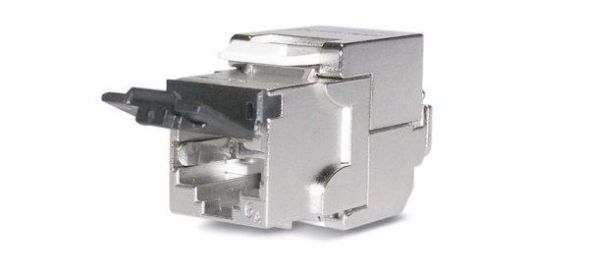

RJ45 module KS-T Plus 1/8 toolless Cat.6A (IEC) with dust cover. The KS-T Plus toolless module can be wired without special tools. It is specified according to the standard TIA/EIA 568-B.2-10:2008 for Cat.6A up to 500 MHz. When connected to Cat.7 data cables, the internationally standardized channel requirements of ISO/IEC 11801:2002/Amd.1:2008 for transmission class EA are exceeded. Data transmissions up to 10 Gigabit Ethernet according to IEEE 802.3an can be transmitted safely with large electrical reserves. , Conductor diameter solid 0.40mm (AWG 26) to 0.65mm (AWG 22)Conductor diameter stranded wire AWG26/7 with 7-wire bare copper stranded wireRJ45 module KS-T Plus 1/8 toolless shielded Cat.6A IEC, according to IEC 60603-7-51 with dust protection flap, shielded, for the transmission of digital and analog voice, image and data signals. The KS-T Plus module meets the component requirements of IEC 60603-7-51 for category 6A up to 500 MHz. In conjunction with Cat.7 and 7A data cables, it also meets the requirements for class EA channels up to 500 MHz. This makes it suitable for the transmission of 10 Gigabit Ethernet in accordance with IEEE 802.3an. The requirements for Power over Ethernet plus (PoE+) in accordance with IEEE 802.3at are fully met. The module can be wired without special tools, which reduces assembly and connection times, conductor diameter wire 0.50mm (AWG24) to 0.65mm (AWG22), conductor diameter stranded wire AWG26/7, rewirable
| Property | Value |
| Weight: | 0.03 |
| Weight unit: | KG |
| Commodity statistical number: | 85363010 |
