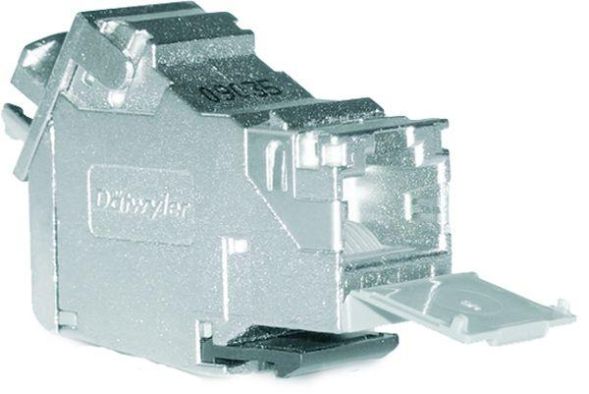

Dätwyler 440005 RJ45mS-K Plus 1/8 Cat.6a Unilan socket module

Module MS-K Plus 1/8 Cat.6A shielded, for the transmission of digital and analogue voice, image and data signals. The MS-K Plus module is specified for a bandwidth of up to 500 MHz in accordance with the component standard IEC 60 603-7-51. In conjunction with shielded data cables (Cat. 6A/7/7A), this can be used to implement cabling of transmission class EA, which is specifically required for the transmission of 10GBase-T (IEEE 802.3an). RJ45 module MS-K Plus 1/8 Cat.6A IEC in accordance with IEC 60603-7-51 with dust protection flap, shielded, for the transmission of digital and analogue voice, image and data signals. The MS-K Plus module is specified for a bandwidth of up to 500 MHz in accordance with the component standard IEC 60 603-7-51. In conjunction with shielded Cat.6A, 7 and 7A data cables, cabling of transmission class EA can be implemented, which is specifically required for the transmission of 10GBase-T (IEEE 802.3an). Suitable for PoE and Power over Ethernet Plus (PoE+) in accordance with IEEE 802.3at. Conductor diameter wire 0.51mm (AWG24) to 0.63mm (AWG22) Conductor diameter stranded wire AWG26
