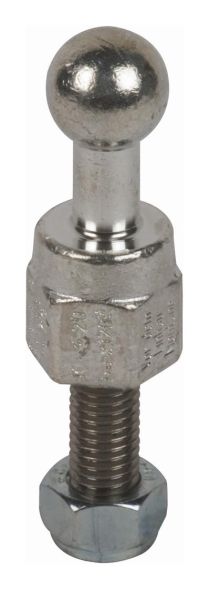

Straight ball fixed point with threaded bolt and nut as phase-side and earth-side connection point according to DIN0683-100 (EN/IEC 61230) on the conductor and earthing system. High mechanical strength due to chipless thread. Therefore also suitable as cable lug and busbar screw connection according to DIN 43673-1.
| Property | Value |
| Connection of the earthing device: | ball fixed point 20 mm |
| Design: | straight |
| Max. short-circuit current: | 33.5 kA |
| Mounting type: | with threaded bolt |
| Max. copper cable cross-section: | 120 mm² |
| Fixed point diameter: | 20 mm |
Features
HAB
754235 KFP 20 M12 35 SSM
Manufacturer
HAN
754235
GTIN
4013364004221
Design
Straight
Mounting type
With threaded bolt
