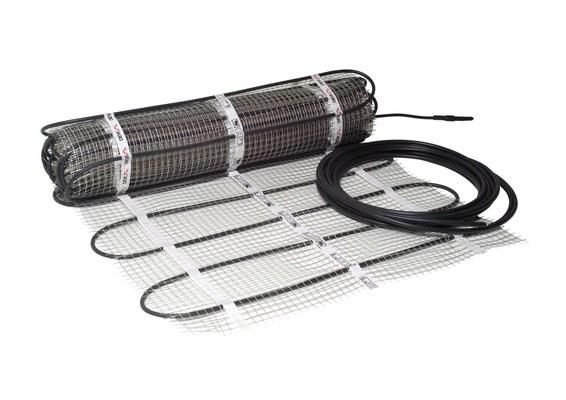

Heating mat for asphalt installation with 30 m PTC thermistor / output 300 W/m2 at 400 V Ready-to-install heating mat with a connecting cable, suitable for embedding in asphalt surfaces. The heating cable meets the requirements of IEC 60800 and EN 62395. With additional protective braiding for use with the residual current circuit breaker. Including factory-fitted waterproof sleeve and a 30 m long PTC thermistor. Voltage: 400 V, nominal limit temperature: 90°C, installation temperature: short-term 240°C, deformation strength 2000 N, tensile strength: 120 N, PTC thermistor: 1 x 30 m 2.5 mm, specific heating output: 300 W/m2, resistance tolerance: +10% / -5%, minimum installation temperature: 5°C, smallest bending radius: 5 x dA, protection class: IP X7
| Property | Value |
| Length: | 14800 mm |
| Width: | 1000 mm |
| Thickness: | 8 mm |
| Connected load: | 4150 W |
| Area: | 14.8 m |
| Power: | 300 W/m |
| Application: | Direct floor heating |
| Heating conductor load: | 30 W/m |
| With carrier mat: | yes |
| Fixation of the Heating conductor: | glued on |
| Number of PTC thermistors: | 1 |
| Length of PTC thermistors: | 30000 mm |
| Suitable for damp rooms: | yes |
| With controller: | no |
| Connection voltage: | 400 V |
| Suitable as roof heating: | no |
| Suitable as open space heating: | yes |
| With floor temperature sensor: | no |
| With room thermostat: | no |
| Self-adhesive: | no |
