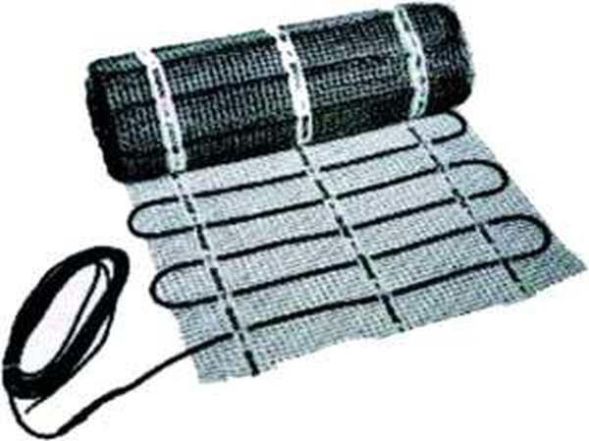

Heating mat with a connecting cable suitable for installation in or under the screed. Use in dry, damp or wet rooms. With additional protective braiding for use with the FI protection circuit. This heating mat system is particularly suitable for installation in angled and/or large areas, as there is no need to return the second connection. Including factory-fitted waterproof sleeves and a 6 m long PTC thermistor, heating cable according to IEC 60800, voltage: 230 V, nominal limit temperature: 80°C, specific heating output: 100 W/m, resistance tolerance: +10% / -5%, minimum installation temperature: 5°C, external diameter: 7 mm, smallest bending radius: 5 x dA, protection class: IP X7, area 8.6 m, 0.75 x 11.4 m
| Property | Value |
| Length: | 11400 mm |
| Width: | 750 mm |
| Thickness: | 7 mm |
| Connected load: | 840 W |
| Area: | 8.6 m |
| Power: | 100 W/m |
| Application: | Direct floor heating |
| Heating conductor load: | 7.5 W/m |
| With carrier mat: | yes |
| Fixation of the Heating conductor: | glued on |
| Number of PTC thermistors: | 1 |
| Length of PTC thermistors: | 6000 mm |
| Suitable for damp rooms: | yes |
| With controller: | no |
| Connection voltage: | 230 V |
| Suitable as roof heating: | no |
| Suitable as open space heating: | no |
| With floor temperature sensor: | no |
| With room thermostat: | no |
| Self-adhesive: | no |
Features
Connected load
840 W
Connection voltage
230 V
Number of PTC thermistors
1
Fixing of the heating conductor
Glued on
Suitable as roof heating
No
Suitable as Open space heating
No
Length of the PTC thermistor
6000 mm
With carrier mat
Yes
HAB
DTCE100 230V 840W
Manufacturer
HAN
83901912
GTIN
5703466158258
Application
Direct underfloor heating
Width
750 mm
Performance
100 W/m
Length
11400 mm
With room thermostat
No
Self-adhesive
No
Strength
7 mm
