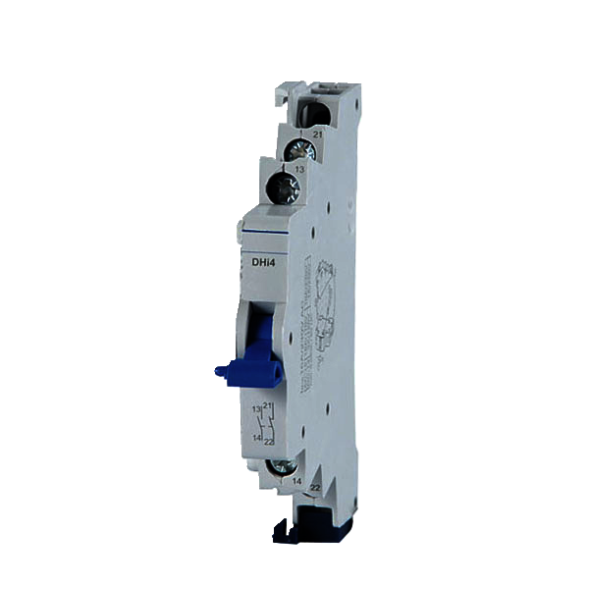

Auxiliary switches report the status of the main devices on which they are mounted. The auxiliary switches DHi 3 to DHi 8 are suitable for the miniature circuit breakers of the DLS 6 h, hsl and i series. They switch in parallel to the miniature circuit breaker when switched off manually, due to overload or short circuit. Properties: - Auxiliary switch function for DLS 6, - various contact designs available, - small size (0.5 TE) - complies with the requirements of IEC 60947-5-1, EN 60947-5-1 and 0660-200 Mounting type: - to the right of the base unit by clamping - quick fastening to the mounting rail - installation position as desired Areas of application: These devices are suitable for querying the operating status of power supplies in residential and commercial buildings as well as industrial plants. Notes: The auxiliary switch does not affect the function of the base unit.
| Property | Value |
| Rated switching current: | 10 A |
| Rated voltage: | 230 V |
| Device mounting: | Circuit breaker |
| Factory-fitted: | no |
| Suitable for max. number of poles of the main contact unit (total): | 4 |
| Suitable for max. current of the main contact unit: | 125 A |
| With autotest for residual current function: | no |
| Number of contacts as normally open: | 1 |
| Number of contacts as Opener: | 2 |
