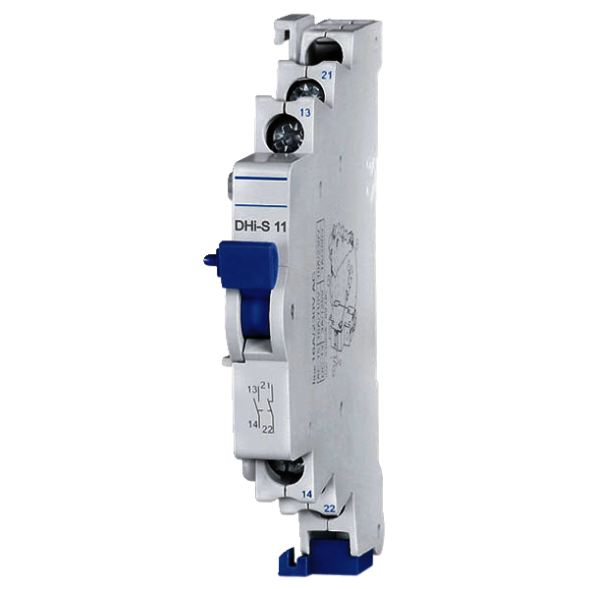

Auxiliary switches report the status of the main devices on which they are mounted. The DHi-S fault signaling auxiliary switches are suitable for circuit breakers of the DLS 6 series (h, hsl or i). They switch when triggered by overload or short circuit. Fault messages can be displayed using additional signaling devices. Properties: - Auxiliary switch function for DLS 6, - various contact designs available, - small size (0.5 TE) - complies with the requirements of IEC 60947-5-1, EN 60947-5-1 and 0660-200 Mounting type: - to the right of the base unit by clamping - quick fastening to a mounting rail - installation position as desired Areas of application: These devices are suitable for querying the operating status of power supplies in residential and commercial buildings as well as industrial plants. Notes: The auxiliary switch does not affect the function of the base unit.
| Property | Value |
| Rated switching current: | 4.8 A |
| Rated voltage: | 230 V |
| Number of fault signal switches: | 1 |
| Device mounting: | Circuit breaker |
| Factory fitted: | no |
| Suitable for max. number of poles of the main contact unit (total): | 4 |
| Suitable for max. current of the main contact unit: | 125 A |
| With autotest for residual current function: | no |
| Number of contacts as Changers: | 2 |
