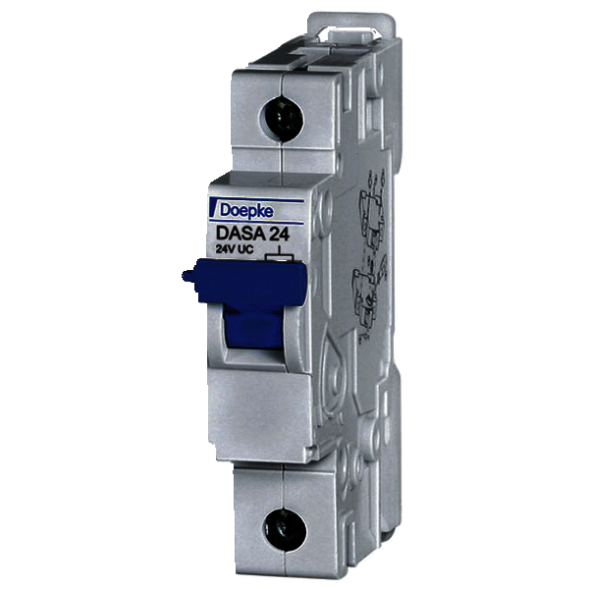

Shunt releases enable circuit breakers to be triggered remotely. These shunt releases are suitable for the DLS 6 and MCB series circuit breakers. After activation by the working current from an external voltage source, they mechanically unlatch the coupled DLS 6/MCB. Properties: - easy to retrofit, - low power requirement for activation, - releases with different actuation voltages available (DASA) Mounting type: - mounting to the right of the circuit breaker using clamps, - quick fastening to the mounting rail - installation position as desired Areas of use: The shunt releases are used in conjunction with the DLS6 (DASA series) or MCB (MCBASA) circuit breakers to remotely trigger the circuit breakers.
| Property | Value |
| Rated voltage: | 24 V |
| Device mounting: | Circuit breaker |
| Factory-fitted: | no |
| Suitable for max. number of poles of the main contact unit (total): | 4 |
| Suitable for max. current of the main contact unit: | 63 A |
| With autotest for residual current function: | no |
