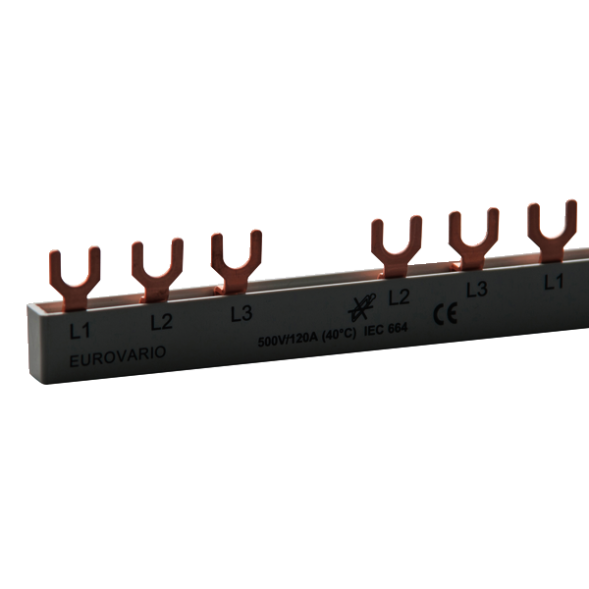

These components for wiring circuit breakers in industrial, commercial and private electrical distribution boards significantly reduce the installation effort. The pre-cut busbars of the Eurovario system are suitable for the supply-side connection of residual current circuit breakers, miniature circuit breakers and FI/LS combinations on the underside of the devices. The bars are designed in a fork design and are available in a wide variety of versions in one to four-pole versions (some with space for auxiliary switches). The EV-S BS contact protection covers unused connections. Properties: - can be used to connect residual current circuit breakers, miniature circuit breakers and FI/LS combinations - wide variety of versions - small design - great time savings when wiring Installation type: The bars are plugged into the upper or lower connection terminals of the devices to be connected. Areas of application: Busbars in this series are used in conjunction with RCCB, MCB and RCBO in power supplies for residential and commercial buildings as well as industrial plants. Notes: When feeding in circuit breakers from above in combination with Doepke residual current circuit breakers, the connecting bars EV-SGANL (Nleft) or EV-SGANR (Nright) must be used.
| Property | Value |
| Number of poles: | 3 |
| Number of phases: | 3 |
| Length: | 210 mm |
| Cross-section: | 10 mm² |
| Rated continuous current Iu: | 63 A |
| Max. Rated operating voltage Ue: | 690 V |
| Insulated: | yes |
| Suitable for number of devices: | 9 |
| Suitable for devices with N conductor: | yes |
| Pitch: | 17.5 mm |
| Rated short-time withstand current Icw: | 15 kA |
| Suitable for devices with auxiliary switch: | no |
| Conditional rated short-circuit current Iq: | 15 kA |
| Design of the electrical connection: | Fork |
| Rated impulse voltage: | 4.5 kV |
