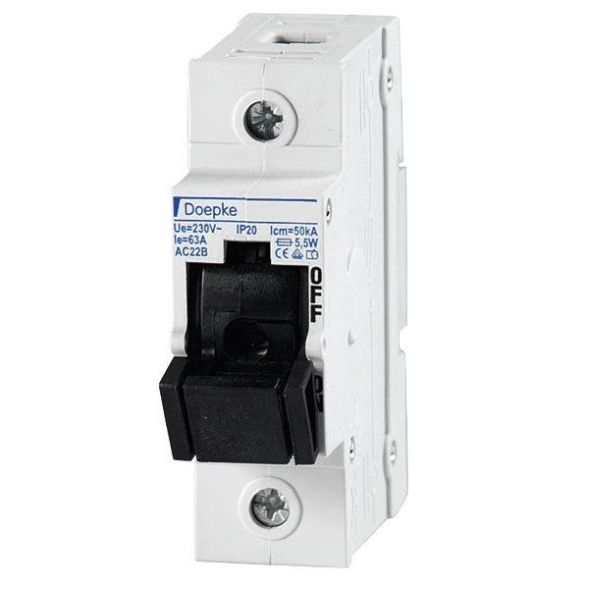

Fuse switch disconnectors disconnect and switch even under load. They protect the system against overcurrent and short circuits. The Tytan II series is suitable for D01 and D02 fuses. The plug-in technology ensures that all phases are disconnected at the same time, so the mechanics of the series prevent high contact resistance and minimize thermal power losses. Disconnectors of this design are equipped with fuse plugs and color-coded adapter inserts according to the rated current. The plug sets have a flashing indicator that indicates a fuse failure. Properties: low current heat losses, suitable for D01 and D02 fuses, finger and back-of-the-hand safe, large clamping range, mounting type: quick attachment to mounting rail, installation position as desired, areas of application: the components are suitable for use in power supplies for residential and commercial buildings as well as industrial plants, notes: all variants are supplied without fuses. These are available separately.
| Property | Value |
| Number of poles: | 1 |
| Rated current: | 63 A |
| Rated voltage: | 400 V |
| Size: | D02 |
