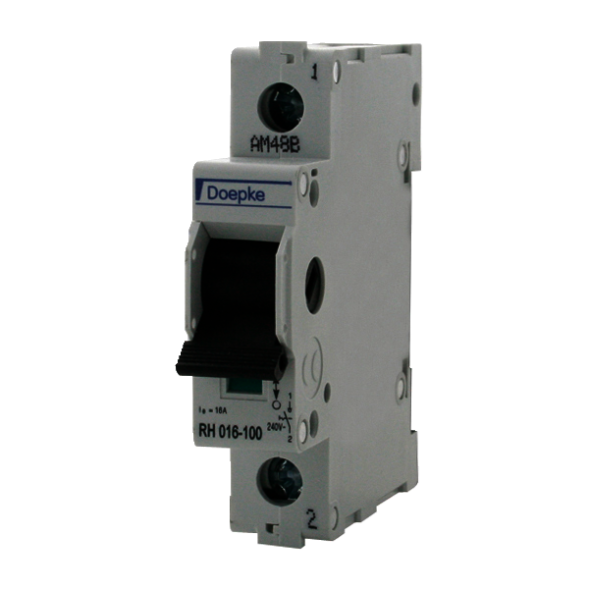

Load disconnectors or main switches completely separate electrical consumers or system components from the electrical supply across all poles. They also switch under load or overload. They are used to switch off for maintenance work and to protect systems. The devices in the RH series are modular main load switches with a disconnecting function and are characterized by the high wear resistance of the contacts. The design enables the use of a switch lock and complies with international construction regulations. Properties: - modular structure, - high short-circuit resistance and high switching capacity, - double-sided double-deck terminals for large conductor cross-sections and busbars, - switch position indicator, - snap switching function when switched on Mounting type: - quick attachment to mounting rail - installation position as desired Areas of application: The devices in the RH series can be used universally, for example in industrial and building technology or in domestic installations. Notes: The designation of the devices in the RH series includes both the rated current (first pair of numbers) and the contact design (last pair of numbers), which are listed in the order break contact, make contact and changeover contact. Thus, an 'RH 063-300', for example, has a rated current of 63 A, three normally open contacts, but no normally closed or changeover contacts.
| Property | Value |
| Number of poles: | 1 |
| Rated continuous current Iu: | 63 A |
| Max. Rated operating voltage Ue at AC: | 240 V |
| Version as EMERGENCY STOP device: | no |
| Protection class (IP), front: | IP20 |
| Connection type main circuit: | screw connection |
| Device design: | Complete device in housing |
| Design of the actuating element: | toggle lever |
| Suitable for floor mounting: | no |
| Conditional rated short-circuit current Iq: | 12.5 kA |
| Motor drive integrated: | no |
| Suitable for front mounting 4-hole: | no |
| Version as maintenance/repair switch: | no |
| Voltage release optional: | no |
| Suitable for front mounting central: | no |
| Suitable for intermediate installation: | no |
| Suitable for distribution board installation: | yes |
| Version as main switch: | no |
| Version as safety switch: | no |
| Motor drive optional: | no |
| Lockable: | yes |
| Version as reversing switch: | no |
| Rated short-time withstand current Icw: | 12.5 kA |
| Color of the actuating element: | black |
| Rated operating voltage: | 240 V |
| Switching capacity at 400 V: | 31 kW |
| Rated continuous current at AC-21, 400 V: | 63 A |
| Number of switches: | 1 |
| Protection class (NEMA): | 1 |
