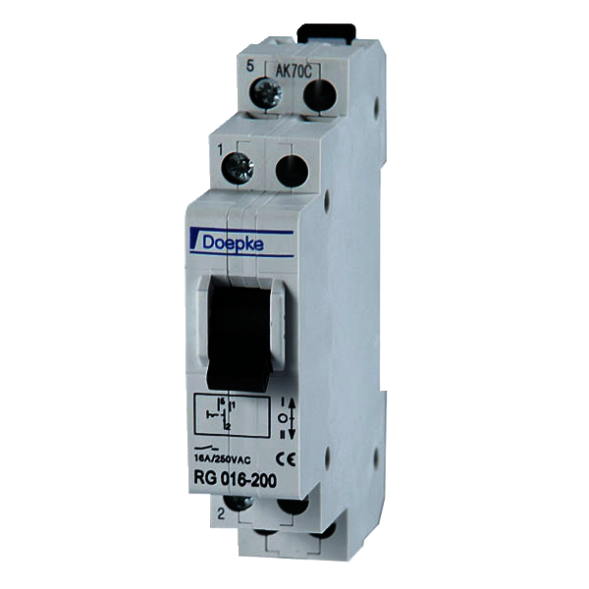

Single-pole group switches, also known as changeover switches, open one circuit and close another at the same time. The middle connection is connected to either one or the other contact. The group switches (changeover switches) of the RG series are suitable for switching single-phase electrical consumers up to 16 A and have a zero position. Despite the high rated current, they have compact dimensions. Properties: - Switching via toggle - Captive lift terminals with rear plug-in and touch protection - Large terminal cross-section - Compact design Mounting type: - Quick fastening to mounting rail - Installation position as required Areas of use: The group switches offer universal application possibilities in industrial and building technology as well as in domestic installations. They can also be used as single or double blind switches. They can also be used to implement lighting controls with manual-0-automatic, for example.
| Property | Value |
| Number of poles: | 1 |
| Rated current: | 16 A |
| Rated voltage: | 230 V |
| Width in modular spacing: | 1 |
| Switching function: | Group switch |
| With signal lamp: | no |
| Type of voltage: | AC |
| Protection class (IP): | IP40 |
| Min. Rated voltage: | 230 V |
| Installation depth: | 60 mm |
| Number of contacts as changeover contact: | 1 |
