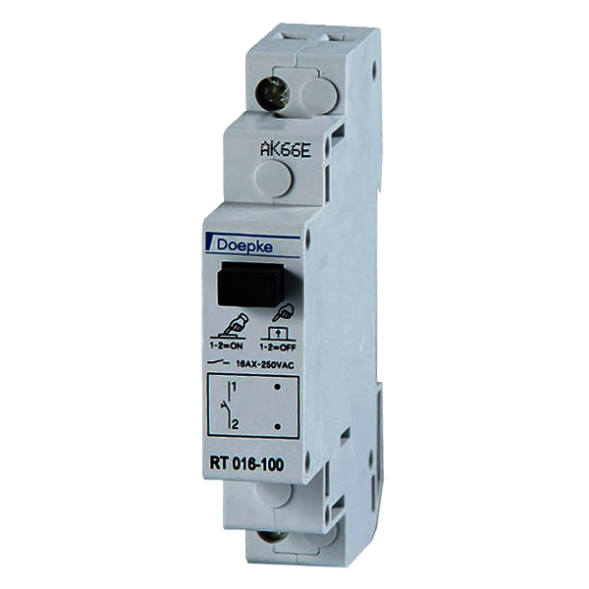

Control buttons enable the generation of pulses for electrical consumers or controls. Control buttons in the RT series have normally open or normally closed contacts, whereby the normally open/normally closed version is also available with a long-lasting, low-loss LED. With a rated current of 16 A, they also allow the switching of high currents with compact dimensions. Properties: - Operation via button - Versions with different rated currents, contact configurations with or without orange LED available - Captive lift terminals with rear plug-in and touch protection - Large terminal cross-section - Compact design Mounting type: - Quick fastening on mounting rail - Installation position as desired Areas of application: The components offer universal application possibilities for control tasks in industrial and building technology as well as in domestic installations.
| Property | Value |
| Width in pitch units: | 1 |
| With signal lamp: | no |
| Voltage type: | AC |
| Protection class (IP): | IP40 |
| Button color: | black |
| Installation depth: | 60 mm |
| Switching voltage: | 250 V |
| Switching current: | 16 A |
| Number of contacts as normally open: | 1 |
