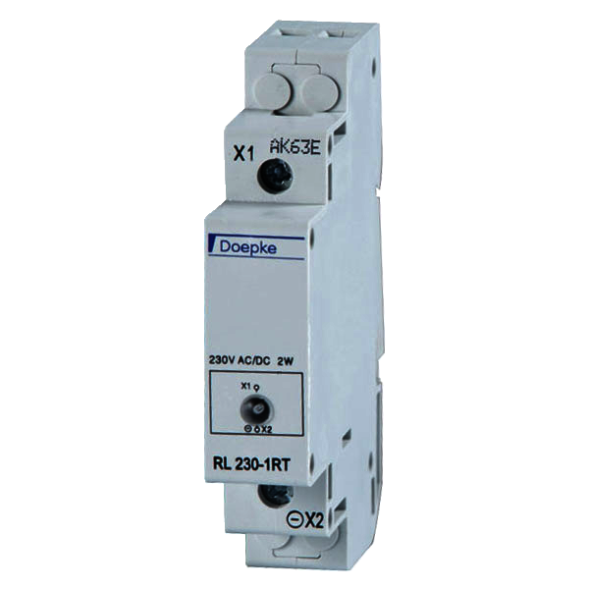

The RL indicator lights with LED are suitable for displaying the operating status of electrical consumers with a supply voltage of 230 V AC or DC. They are equipped with a long-lasting, low-power loss LED in white, red or green. All devices meet the requirements of EN 60699 and 0632. Properties: - available with the LED colors white (W), green (GR) or red (RT) - operating voltage: 110 V ... 240 V AC/DC - high luminous intensity of 15 mcd - terminals for large cable cross-sections with touch protection in accordance with BGV A3 - top and bottom terminals: lift terminals with rear protection - low power consumption - width only 1 TE Mounting type: - quick attachment to mounting rail attachment with 2 locking positions. - installation position as desired Areas of application: The indicator lights offer universal application options for control tasks in industrial and building technology as well as in domestic installations.
| Property | Value |
| Colour of the dome: | red |
| Light source: | LED |
| Width in pitch units: | 1 |
| Max. lamp power: | 2 W |
| Rated voltage: | 240 V |
| Voltage type: | AC/DC |
| Installation depth: | 65 mm |
| Protection class (IP): | IP40 |
