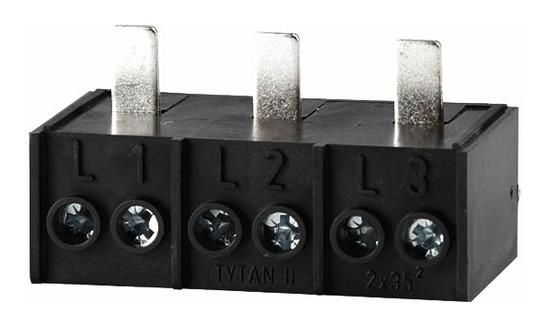

Terminals for phase rails for feeding into switching devices. The double terminal enables all three feed lines to be looped through to D0 load disconnectors. Properties: - There are two input terminals per phase, - Permitted connection cross-section of 1.5 mm2 - 35 mm2
| Property | Value |
| Number of poles: | 3 |
| Touch safe: | no |
| Width: | 80.5 mm |
| Height: | 43.7 mm |
| Depth: | 28.8 mm |
| Connection type: | Screw/spring connection |
| Mounting type: | Screw |
| Number of inputs: | 1 |
| Number of outputs: | 1 |
| Suitable for solid Conductor: | yes |
| Suitable for multi-wire conductors: | no |
| Suitable for fine-wire conductors: | no |
| Suitable for fine-wire conductors without wire end ferrules: | yes |
| Suitable for extra-fine-wire conductors: | no |
| Suitable for extra-fine-wire conductors without wire end ferrules: | yes |
| Conductor cross-section access: | 1.5 to 35 mm² |
| Conductor cross-section access AWG: | 0 |
Features
Number of outputs
1
Number of inputs
1
Manufacturer
HAN
09980140
GTIN
4014712049000
Connection type
Screw/spring connection
Width
80.5 mm
Suitable for fine-stranded conductors
No
Suitable for solid ladders
Yes
Suitable for stranded conductors
No
Height
43.7 mm
Mounting type
Screw
Number of poles
3
Depth
28.8 mm
