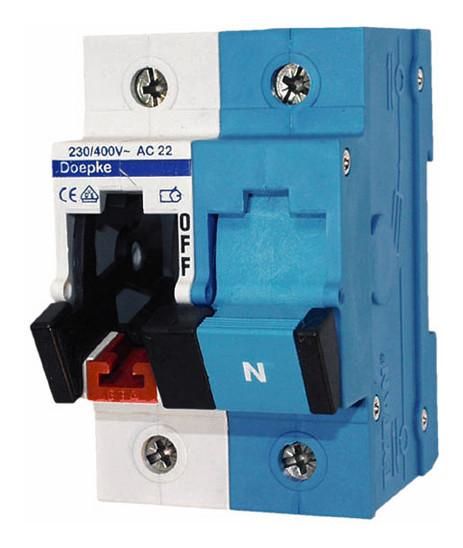

Fuse switch disconnectors disconnect and switch even under load. They protect the system against overcurrent and short circuits. The Tytan II series is suitable for D01 and D02 fuses. The plug-in technology ensures that all phases are disconnected at the same time, so the mechanics of the series prevent high contact resistance and minimize thermal losses. Disconnectors of this design are supplied with adapter inserts for fuses up to 63 A. This standard variant cannot be locked. Properties: - low current heat losses, - suitable for D01 and D02 fuses, - finger and back of the hand safe, - large clamping range Mounting type: - quick attachment to mounting rail - installation position as desired Areas of application: - The components are suitable for use in power supplies for residential and commercial buildings as well as industrial plants. Notes: - All empty housings are supplied with adapter inserts that can accommodate fuse plug sets up to 63A. - All variants are supplied without fuses. These are available separately.
| Property | Value |
| Number of poles: | 2 |
| Rated current: | 63 A |
| Rated voltage: | 400 V |
| Size: | D02 |
