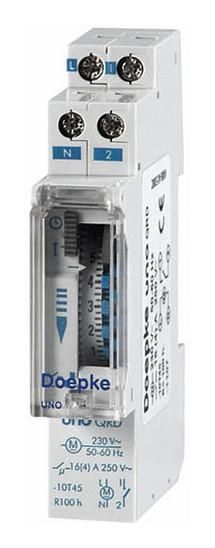

Timers switch a contact on or off at set times. They help to implement energy-saving measures. The mechanical UNO timers control an electrical load circuit using daily or weekly programs. The automatic program can be switched off. Some models have a power reserve. This ensures that the consumers are reliably switched even in the event of a temporary power failure. Properties: - mechanical switching wheel with captive switching slides, - daily program (Uno-D, Uno-QRD) or weekly program (Uno-QRS), - smallest switching times of 15 minutes (Uno-D, Uno-QRD) or 2 hours (Uno-QRS) - power reserve: none (Uno-D) or 150 hours (Uno-QRD/-QRS) - high accuracy, - control switch for continuous operation, - 1 potential-free normally open contact 16 (4) A / 250VAC, - operating voltage: 230VAC, - low power consumption, - sealable transparent cover, - module width only 1 pitch unit (17.5mm), protection class IP 20 Mounting type: - quick attachment to mounting rail - installation position as desired Areas of application: Timers for the time-dependent control of any electrical consumers in private, commercial or industrial applications.
| Property | Value |
| Width in pitch units: | 1 |
| Number of channels: | 1 |
| Protection class (IP): | IP20 |
| 24 h program: | yes |
| Manual operation: | no |
| Supply voltage: | 230 V |
| Mounting type: | DIN rail |
| Type of supply voltage: | AC |
| Frequency of supply voltage: | 50 to 60 Hz |
| Shortest switching time channel 1: | 15 min |
| Contact design: | Normally open |
| Accuracy per day: | 1 s |
| Mains synchronous: | no |
| Weekly program: | no |
| Shortest switching time channel 2: | 15 min |
| Nominal switching current at 250 V AC: | 16 A |
| Annual program: | no |
| Quartz controlled: | no |
| Automatic Summer/winter time changeover: | no |
| Height: | 90 mm |
| Width: | 18 mm |
| Depth: | 66 mm |
| Program disc division 1: | 15 min |
| Switching preselection: | no |
| Potential-free switching contact: | yes |
| 60 min program: | no |
