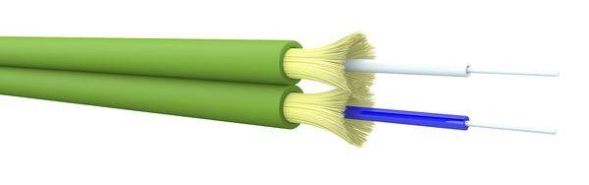

DIN designation: IV(ZN)H 2.8 fig.8 600N fiber optic cable as fig. 8 connection duplex version for structured cabling. The cable is metal-free with a tensile strength of 600N. The jacket is made of halogen-free, flame-retardant material according to IEC60332-1, IEC60332-3-24, IEC60754-1/2, IEC61034, EN50399 for use in public buildings with high risk to people according to Eurofire class Cca s1a d1 a1. Use as a flame-retardant cable indoors. The fiber optic cable exceeds the requirements of EN50173-1, ISO/IEC11801 and EN/IEC60794-2.
| Property | Value |
| Outer diameter approx.: | 2.8 mm |
| Sheath color: | gray |
| Fiber type: | Multimode 62.5/125 |
| Core type: | Full-loader |
| Number of fibers per core: | 1 |
| With strain relief: | yes |
| With rodent protection: | no |
| Reinforcement: | no |
| Sheath material: | Polyolefins |
| Cable metal-free: | yes |
| Flame-retardant: | according to EN 60332-3-24 |
| Low smoke according to EN 61034-2: | yes |
| Functional integrity: | no |
| Chemically resistant: | no |
| Number of fibers: | 2 |
| Halogen-free according to EN 60754-1/2: | yes |
| Oil-resistant according to EN 60811-404: | no |
| Category: | OM1 |
| Specification of sheath material: | other |
| Cable longitudinally watertight: | no |
| Cable transversely watertight: | no |
| Fire behavior class according to EN 13501-6: | Cca |
| Smoke development class according to EN 13501-6: | s1a |
| Dripping behavior class according to EN 13501-6: | d1 |
| Acid development class according to EN 13501-6: | a1 |
| Min. permissible bending radius, stationary use/permanently installed: | 20 mm |
| Laying in the ground: | no |
Features
Sheath material
Polyolefins
Outer diameter approx.
2.8 mm
Oil-resistant according to EN 60811-404
No
Category
OM1
HAB
JV(ZN)H 2G 62,5/125 grey
Minimal order
4000 meters
Manufacturer
HAN
60019396
GTIN
4065624016642
Functional preservation
No
Coat color
Gray
With strain relief
Yes
